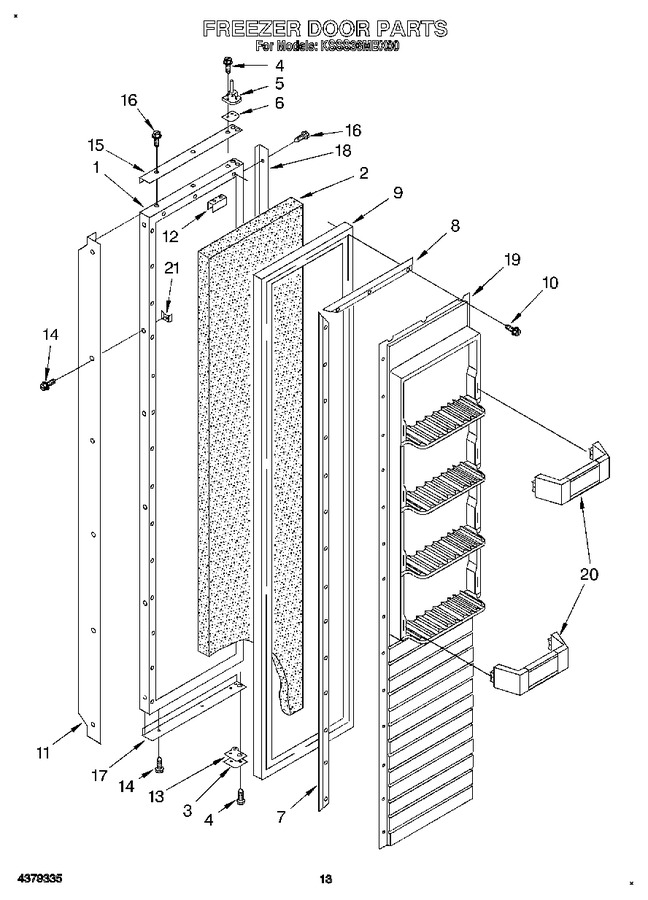

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000714		Exterior Door Panel, Freezer (also Order Item 4)		Appelez-nous	-
2	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
3	2000720		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	2000721		Hinge, Top		Appelez-nous	-
6	2000303		Door Spacer		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2000877		Door Gasket, Magnetic		Appelez-nous	-
10	WP489069		Screw (34)   (Replaces: 489101)			Immediately	$ 8.40
11	2000324		Handle, Door		Appelez-nous	-
12	2000349		Tap, Plate		Appelez-nous	-
13	2000697		Door, Spacer		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 8.28
15	2000326		Trim (top)		Appelez-nous	-
16	489112		Screw		Appelez-nous	-
17	2000329		Trim (bottom)		Appelez-nous	-
18	2000325		Trim (side)		Appelez-nous	-
19	2000177		Panel, Interior Door		Appelez-nous	-
20	2000604		Shelf Bin (4)		Appelez-nous	-
21	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
