Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1112640 Control Panel Appelez-nous -
2 2000974 Inlay, Control Panel Appelez-nous -
3 2000789 Circuit Board Special Order $ 124.96

4 2001738 Control Knob Appelez-nous -
5 837444 Knob, Retainer Appelez-nous -
6 W11384469 Switch, Rocker Arm   (Replaces: 1108112) In-Stock Immediately $ 37.23

7 1113133 Seal, Control Panel Appelez-nous -
8 489260 Screw (3) Appelez-nous -
9 2000153 Hole Plug (3) Appelez-nous -
10 1113773 Shield, Control Panel Appelez-nous -
11 1112613 Socket, Light (2) Appelez-nous -
12 WP548049 Light Bulb (2)   (Replaces: 547225) Special Order $ 86.35

13 W11624204 Screw   (Replaces: 486194) Special Order $ 14.02

14 2001074 Control Harness Appelez-nous -
15 2001141 Channel, Wiring Appelez-nous -
16 1115375 Clip, Wiring (2) Special Order $ 11.15


    View Diagram in Separate Window     Print Icon   Print Part List

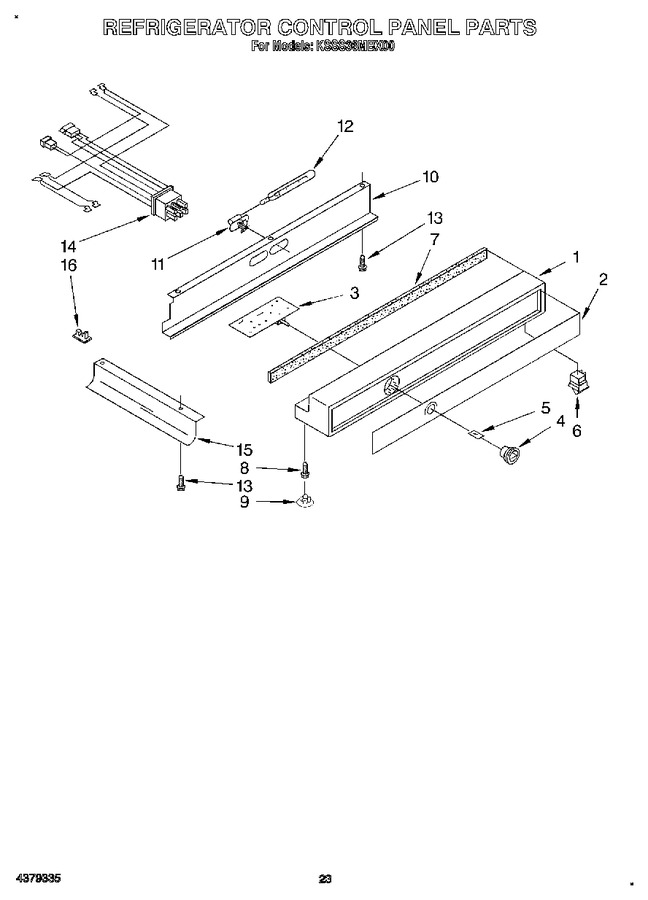

Diagram for KSSS36MBX00
