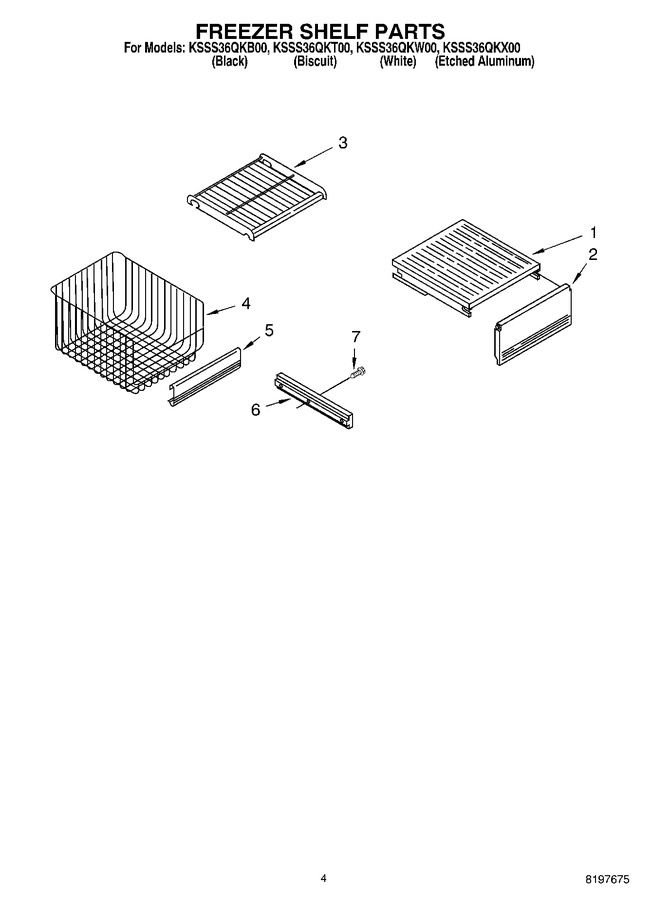

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220889		Solid Shelf		Appelez-nous	-
2	2220846		Front, Ice Compartment		Appelez-nous	-
3	1113636		Shelf, Fixed (2)		Appelez-nous	-
3	1113564		Shelf, Deep		Appelez-nous	-
4	2208192		Basket		Appelez-nous	-
5	2220843		Trim, Basket		Appelez-nous	-
6	2208198		Slide, Basket (right Side)		Appelez-nous	-
6	2208197		Slide, Basket (left Side)		Appelez-nous	-
7	W11624204		Screw   (Replaces: 486194)				$ 14.02
