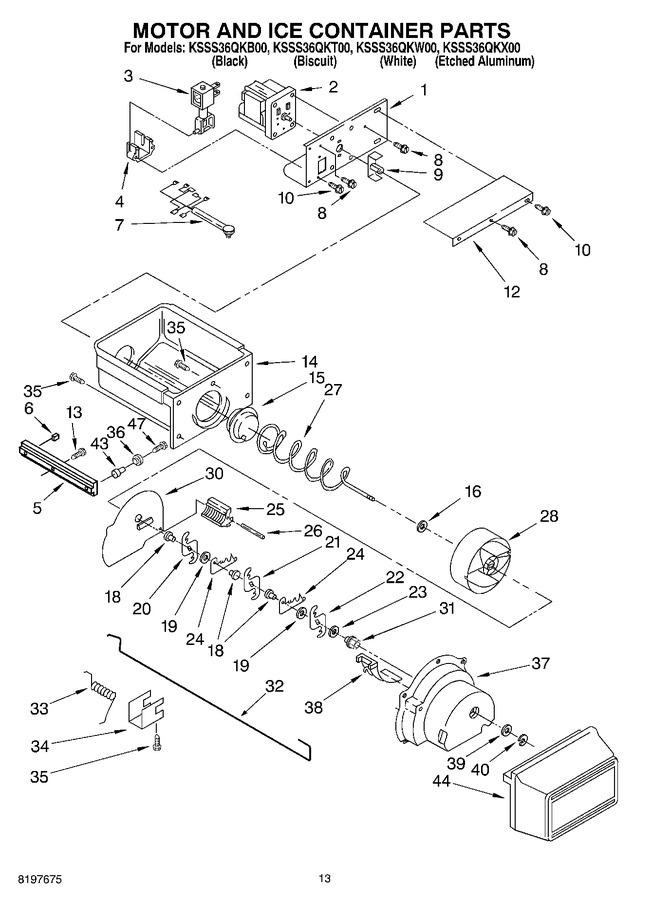

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003939		Bracket, Motor		Appelez-nous	-
2	WP2188242		Motor, Dispenser   (Replaces: 2155263)				$ 387.12
3	2003979		Soleniod Assembly		Appelez-nous	-
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.87
5	2002720		Slide, Container (right Side)		Appelez-nous	-
5	2002721		Slide, Container (left Side)		Appelez-nous	-
6	1113169		Stop, Roller				$ 11.28
7	2209120		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 7.30
9	WPW10169511		Coupling, Motor   (Replaces: 2205716)				$ 24.51
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
12	1113128		Cover, Motor		Appelez-nous	-
13	W11624204		Screw   (Replaces: 486194)				$ 14.72
14	2208906		Ice Container		Appelez-nous	-
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
16	WP3400912		Washer   (Replaces: 3400912)				$ 8.32
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.74
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.77
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 90.87
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 91.00
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 91.00
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 22.33
26	489229		Roll Pin				$ 48.47
27	2160602		Conveyor		Appelez-nous	-
28	4388736		Drum   (Replaces: 2196194)				$ 96.97
30	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 34.85
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
32	2002728		Control Arm		Appelez-nous	-
33	1119020		Spring, Return				$ 19.13
34	1119021		Retainer Clip, Rod				$ 10.96
35	WP488787		Screw   (Replaces: 488886)				$ 11.26
36	2188212		Roller		Appelez-nous	-
37	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 130.65
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
39	489234		Washer, Plain				$ 14.04
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
43	2174478		Eyelet, Roller				$ 5.70
44	2002722		Front Cover, Ice Container		Appelez-nous	-
47	WPW10272364		Screw   (Replaces: 2003478)			Immediately	$ 11.36
99	2160606		Complete Ice Crusher Mechanism Assembly		Appelez-nous	-
100	2006541		Complete Ice Container Assembly		Appelez-nous	-
