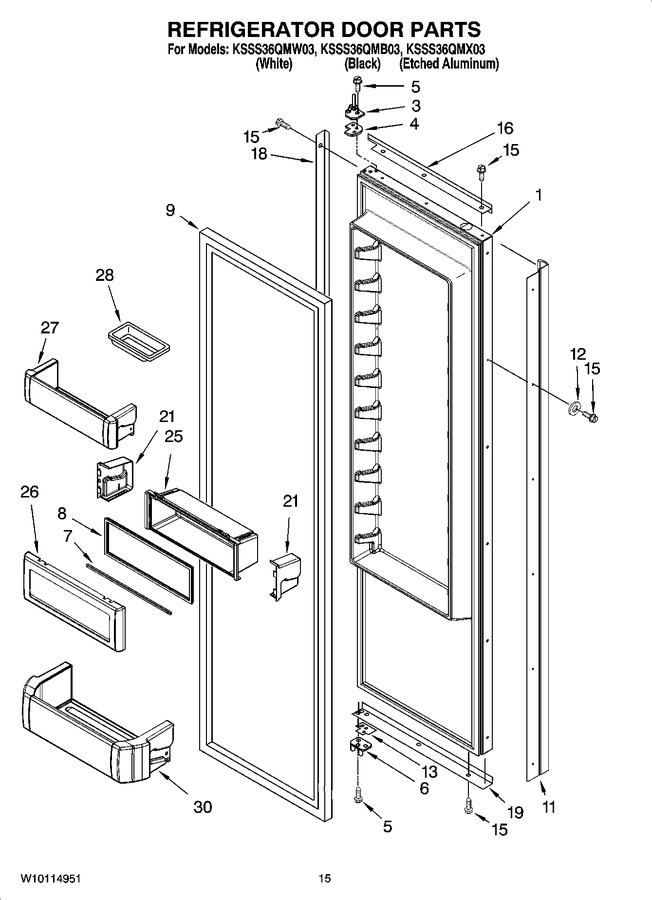

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252329		Refrigerator Door Panel (includes Item 9)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	2222795		Rail, Lid				$ 84.11
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 214.40
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
11	2256473B		Handle, Door (black)		Appelez-nous	-
11	2256473		Handle, Door (etched Aluminum)		Appelez-nous	-
11	2256473W		Handle, Door (white)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2257637		Door Spacer, Bottom				$ 15.45
15	W10825422		Screw, 8-15 X .500 (white)   (Replaces: 8281251)				$ 11.36
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
15	W10851443		Screw, 8-15 X .500 (black)   (Replaces: 8281252)			Immediately	$ 8.13
16	2005013		Trim (top) (white)		Appelez-nous	-
16	2005839		Trim, Top (black)		Appelez-nous	-
16	100005988		Trim, Top (etched Aluminum)   (Replaces: 2005010)				$ 13.51
18	2005967		Trim, Side (etched Aluminum)		Appelez-nous	-
18	2005968		Trim (side) (white)		Appelez-nous	-
18	2005971		Trim, Side (black)		Appelez-nous	-
19	2215993		Trim (bottom) (etched Aluminum)		Appelez-nous	-
19	2215993B		Trim (bottom) (black)		Appelez-nous	-
19	2215993W		Trim (bottom) (white)		Appelez-nous	-
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
25	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 84.93
26	WPW10131132		Door, Utility Bin   (Replaces: 2222924)				$ 75.81
27	W10323598		Door Shelf   (Replaces: 2222772)				$ 104.79
28	2165792		Butter Tray		Appelez-nous	-
30	W10323746		Shelf, Gallon Door   (Replaces: 2222769)				$ 108.24
