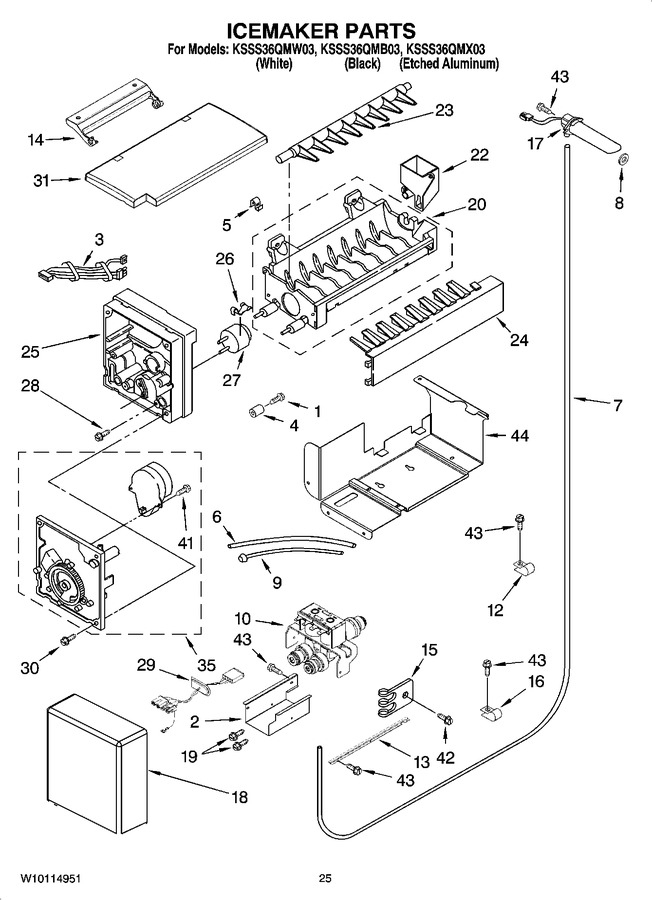

15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2198641		Screw   (Replaces: 2198641)				$ 7.19
2	2320598		Shield, Valve Electrical		Appelez-nous	-
3	2310192		Wire Assembly, Icemaker		Appelez-nous	-
4	2252354		Spacer		Appelez-nous	-
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	2320654		Tube, Filter Inlet				$ 54.75
7	2320658		Water Inlet Tube Assembly				$ 71.00
8	2302758		Seal Gasket		Appelez-nous	-
9	W11533506		Tube, Filter Outlet   (Replaces: 2317912)			Immediately	$ 31.57
10	2307651		Valve, Solenoid		Appelez-nous	-
12	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.99
13	2320559		Support, Valve				$ 84.56
14	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
15	WP488366		Clamp, Nylon Valve   (Replaces: 2208136)				$ 11.18
16	488937		Clamp, Tube		Appelez-nous	-
17	W10460127		Tube, Water Inlet   (Replaces: 2259417)				$ 198.34
18	2257538		Cover		Appelez-nous	-
19	WP489128		Screw   (Replaces: 488500)				$ 10.88
20	WPW10122550		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: 2212351)				$ 207.28
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	626753		Ejector   (Replaces: 2212320)				$ 13.94
24	W10297245		Ice Striper   (Replaces: 2212318)				$ 72.98
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 2315522)				$ 11.05
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw				$ 13.37
29	2310183		Wire Assembly, (water Valve)		Appelez-nous	-
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W10504752		Cover, Icemaker   (Replaces: 2317039)				$ 86.46
35	W10190935		Module Assembly (includes Items 21 & 41)   (Replaces: 626680)			Immediately	$ 110.07
41	489136		Screw, (2)				$ 10.29
42	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
43	W11624204		Screw   (Replaces: 486194)				$ 14.02
44	2300167		Bracket, Icemaker Mounting		Appelez-nous	-
100	978849		Static Cleaner, Black Panel				$ 15.82
100	2220873		Front Panel Kit (stainless Steel)		Appelez-nous	-
100	2220867		Front Panel Kit (black)		Appelez-nous	-
100	2220864		Front Panel Kit (white)		Appelez-nous	-
100	WPW10277449		Complete Icemaker Assembly   (Replaces: 2320637)				$ 263.04
100	2320560		Ice Container Assembly		Appelez-nous	-
