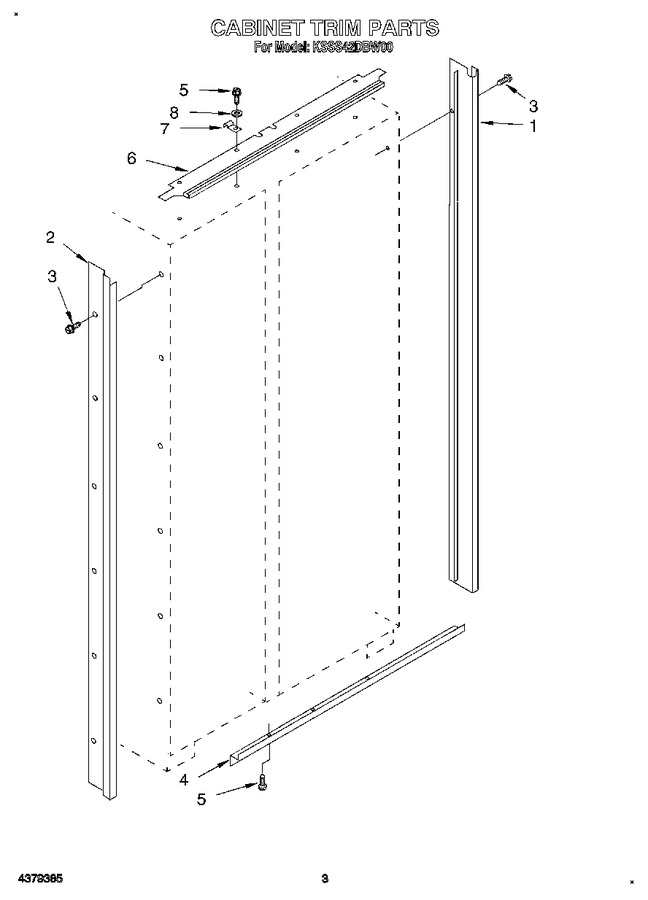

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001390		Cabinet, Trim R.s		Appelez-nous	-
2	2001391		Cabinet, Trim L.s		Appelez-nous	-
3	2001297		Screw		Appelez-nous	-
4	2001189		Cabinet, Trim (bottom)		Appelez-nous	-
5	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
6	2001388		Cabinet, Trim Top		Appelez-nous	-
7	2000007		Retainer, Unit Base (2)		Appelez-nous	-
8	487944		Washer (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
