Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1112366 Solid Shelf Appelez-nous -
2 2000886 Front, Ice Compartment Appelez-nous -
3 1113565 Shelf, Bottom (2) Appelez-nous -
3 1113637 Shelf, Top (1) Appelez-nous -
4 2001625 Basket Appelez-nous -
5 1113643 Trim, Basket Appelez-nous -
6 1113870 Roller Appelez-nous -
7 1113871 Eyelet, Roller Appelez-nous -
8 WPW10272364 Screw   (Replaces: 489211) In-Stock Immediately $ 11.36

9 488307 Washer Appelez-nous -
10 2000061 Slide, Basket R.s. Appelez-nous -
10 2000062 Slide, Basket L.s. Appelez-nous -
11 1113169 Stop, Roller Special Order $ 11.28

12 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

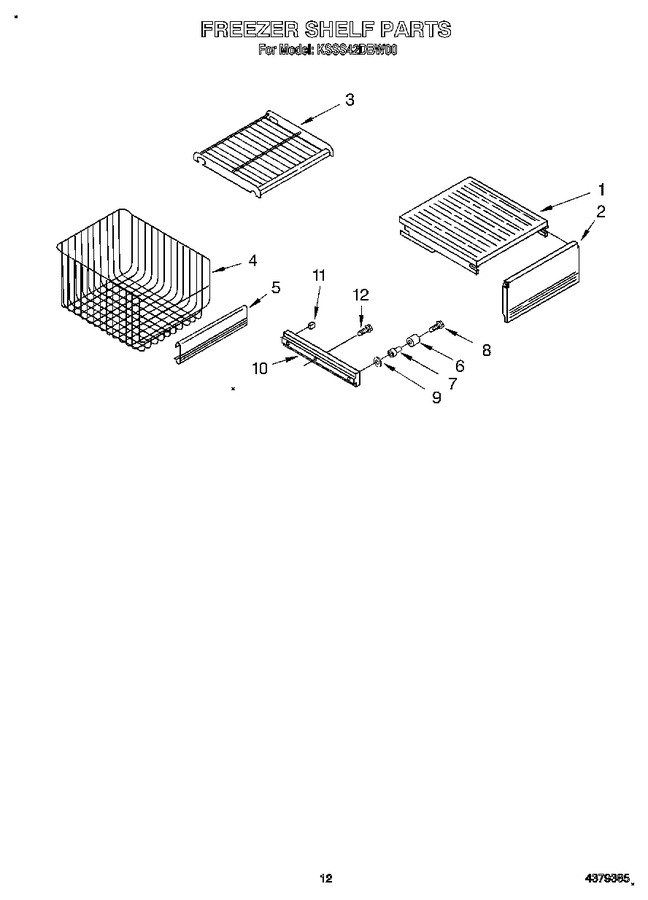

Diagram for KSSS42DBW00
