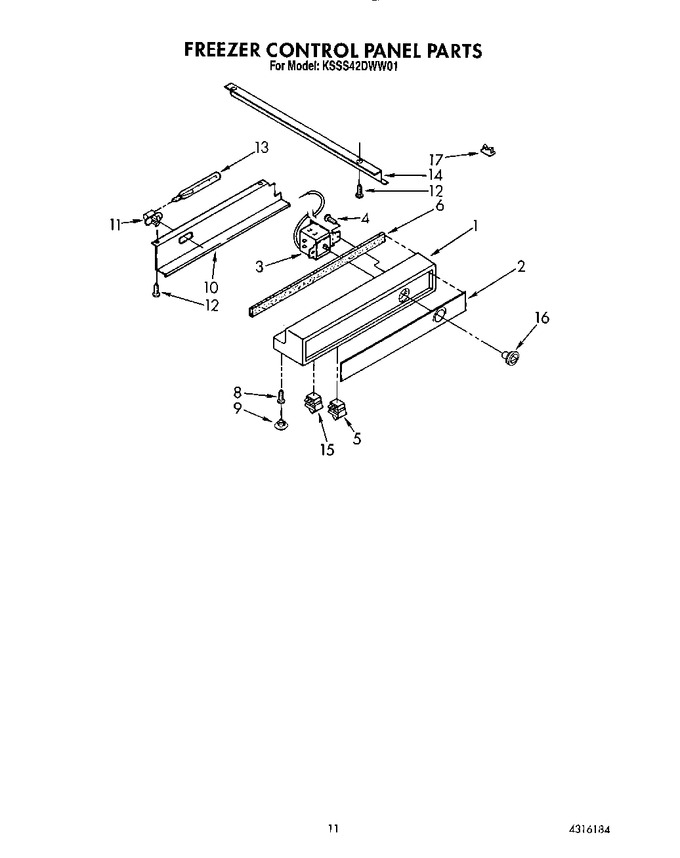

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112596		Control Panel		Appelez-nous	-
2	1113964		Inlay, Control Panel		Appelez-nous	-
3	WP1113466		Thermostat & Barrier Assembly   (Replaces: 1113466)				$ 245.79
4	488974		Screw (2)		Appelez-nous	-
5	WP4387911		Switch, Rocker Arm (dispenser Motor)   (Replaces: 851387)			Immediately	$ 41.64
6	1113134		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	534927		Hole Plug (3)		Appelez-nous	-
10	1113768		Shield, Control Panel		Appelez-nous	-
11	1112613		Socket, Light		Appelez-nous	-
12	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
13	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
14	1112707		Channel, Wiring		Appelez-nous	-
15	W11384469		Switch, Rocker Arm (light)   (Replaces: 1108112)			Immediately	$ 39.09
16	1112592		Knob, Thermostat		Appelez-nous	-
17	1115375		Clip, Wiring				$ 11.15
