SELECT A DIAGRAM

02 - Cabinet


03 - Cabinet Trims And Breaker Trim


04 - Refrigerator Liner


05 - Freezer Liner


06 - Ice Container


07 - Refrigerator Control Panel


08 - Freezer Control Panel


09 - Refrigerator Shelf


10 - Freezer Shelf


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser And Front


14 - Upper Unit, Lit/optional


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Icemaker


18 - Top Grille And Unit Cover

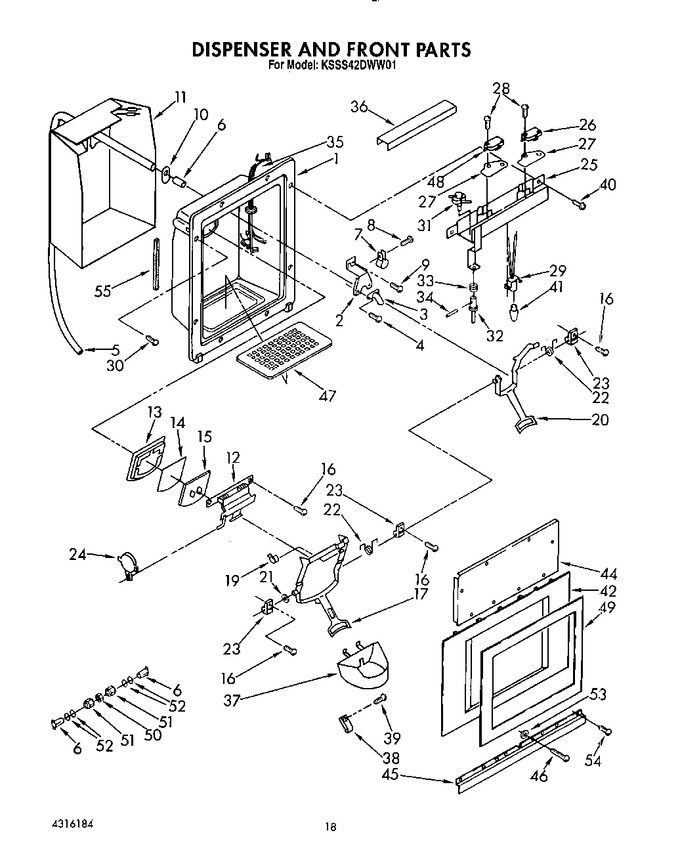

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124715		Housing, Dispenser		Appelez-nous	-
2	987049		Bracket, Water Fitting		Appelez-nous	-
3	WP4388152		Water Fitting, Dispenser   (Replaces: 2150328)				$ 276.43
4	WP965173		Screw, 8 X 3/8   (Replaces: 487916)			Immediately	$ 10.72
5	W10823511		Water Tube   (Replaces: 987053)			Immediately	$ 32.41
6	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
7	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
8	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
9	488316		Screw, 8-18 X 3/4		Appelez-nous	-
10	987048		Grommet		Appelez-nous	-
11	2149097		Heater, Ice Dispenser		Appelez-nous	-
12	938669		Ice Door Mechanism		Appelez-nous	-
13	983691		Gasket, Ice Door				$ 6.61
14	987121		Shield, Impact				$ 5.91
15	983690		Door, Ice				$ 11.13
16	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 7.84
17	2147476		Lever, Ice Dispenser		Appelez-nous	-
19	987917		Bearing, Clip		Appelez-nous	-
20	2147478		Lever, Water Dispenser		Appelez-nous	-
21	488307		Washer		Appelez-nous	-
22	983696		Spring, Lever				$ 21.26
23	983697		Bearing, Lever		Appelez-nous	-
24	WP1120581		Delay Mechanism   (Replaces: 1120581)				$ 213.07
25	1107454		Bracket, Control		Appelez-nous	-
26	841336		Switch		Appelez-nous	-
27	984683		Insulation, Switch		Appelez-nous	-
28	488361		Screw, 4-40 X 1		Appelez-nous	-
29	987265		Lamp Holder		Appelez-nous	-
30	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
31	851386		Light Switch		Appelez-nous	-
32	1107457		Plunger, Extension		Appelez-nous	-
33	983986		Spring, Plunger		Appelez-nous	-
34	983987		Retainer, Pin		Appelez-nous	-
35	934302		Wiring Harness, Door		Appelez-nous	-
36	984494		Shield, Wiring		Appelez-nous	-
37	2147479		Guiding, Ice		Appelez-nous	-
38	2147480		Glass Stop		Appelez-nous	-
39	488892		Screw		Appelez-nous	-
40	WP488729		Screw, 8-15 X 1/2 (6)   (Replaces: 487052)			Immediately	$ 7.79
41	WP22002263		Light Bulb   (Replaces: 851389)			Immediately	$ 13.66
42	1113987		Front Cover, Housing		Appelez-nous	-
44	1112836		Cover, Dispenser Opening		Appelez-nous	-
45	1113833		Trim, Front (2)		Appelez-nous	-
46	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 7.79
47	1126120		Grille, Overflow		Appelez-nous	-
48	934316		Switch		Appelez-nous	-
49	1113382		Overlay, Cover		Appelez-nous	-
50	WP4211117		Union   (Replaces: 489098)				$ 9.96
51	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 7.79
52	488794		``o`` Ring Seal		Appelez-nous	-
53	487944		Washer (2)		Appelez-nous	-
54	W10759522		Screw (2)   (Replaces: 488568)				$ 7.75
55	482672		Seal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
