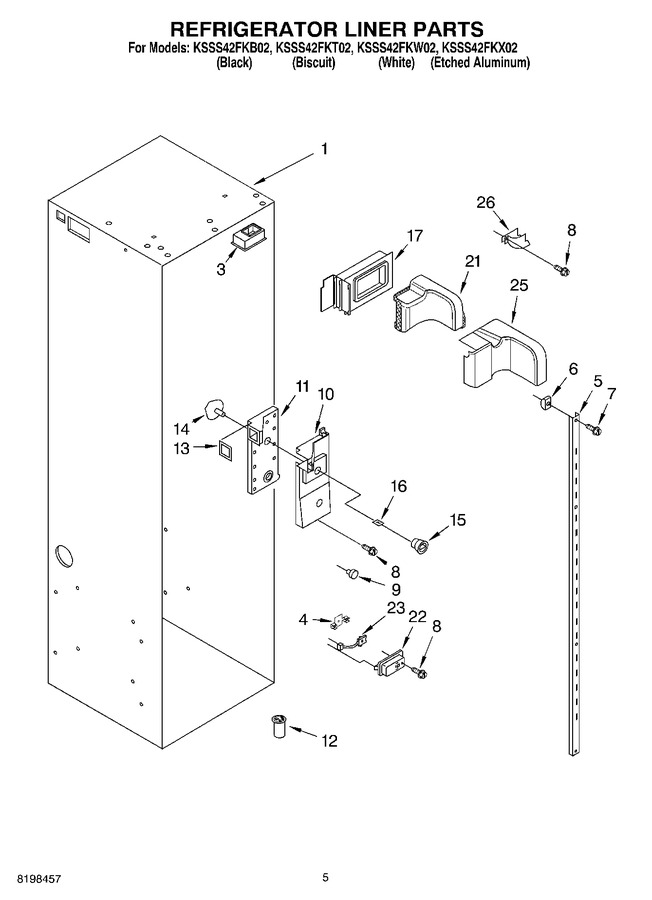

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2208970		Air Duct				$ 151.40
4	2209204		Clip, Thermistor		Appelez-nous	-
5	2221211		Ladder, Shelf (2)		Appelez-nous	-
6	520965		Screw Support, Ladder (8)				$ 31.35
7	2006475		Screw,		Appelez-nous	-
8	W11624204		Screw   (Replaces: 486194)				$ 14.72
9	1112257		Hole Plug		Appelez-nous	-
10	2220888		Meat Pan, Air Duct Cover		Appelez-nous	-
11	2000337		Meat Pan, Air Duct		Appelez-nous	-
12	2171846		Release Valve				$ 18.99
13	2221175		Seal, Air Duct		Appelez-nous	-
14	1112218		Damper Control, Meat Pan				$ 8.51
15	2003811		Control Knob, Meat Pan		Appelez-nous	-
16	2003841		Retainer, Knob		Appelez-nous	-
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 412.58
21	2208997		Diffuser Assembly		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	WP2188820		Thermistor   (Replaces: 2213442)			Immediately	$ 30.85
25	2309087		Cover, Diffuser   (Replaces: 2215728)		Appelez-nous	-
26	2003577		Guard, Air Return		Appelez-nous	-
