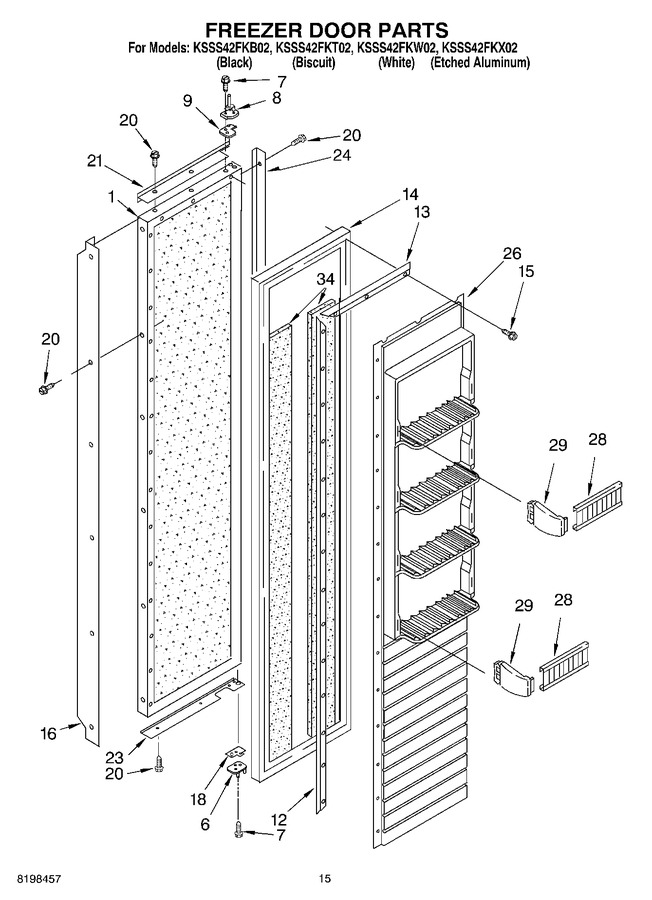

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259163		Freezer Door Panel (includes Insulation)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 60.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 297.62
9	2256381		Spacer-door, Top				$ 24.49
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188496A		Door Gasket, Magnetic   (Replaces: 2188496)				$ 332.76
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2005943		Handle, Door (white)		Appelez-nous	-
16	2005942		Handle, Door (etched Aluminum)		Appelez-nous	-
16	2005945		Handle, Door (biscuit)		Appelez-nous	-
16	2005946		Handle, Door (black)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
20	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
20	8281253		Screw (biscuit)		Appelez-nous	-
21	2005020		Trim (top) (etched Aluminum)		Appelez-nous	-
21	2005023		Trim (top) (white)		Appelez-nous	-
21	2005886		Trim (top) (black)		Appelez-nous	-
21	2005760		Trim (top) (biscuit)		Appelez-nous	-
23	2215985W		Trim (bottom) (white)		Appelez-nous	-
23	2215985B		Trim (bottom) (black)		Appelez-nous	-
23	2215985		Trim (bottom) (etched Aluminum)		Appelez-nous	-
23	2215985T		Trim (bottom) (biscuit)		Appelez-nous	-
24	2005966		Trim (side) (black)		Appelez-nous	-
24	2005962		Trim (side) (etched Aluminum)		Appelez-nous	-
24	2005963		Trim (side) (white)		Appelez-nous	-
24	2005965		Trim (side) (biscuit)		Appelez-nous	-
26	2209031		Panel, Interior Door		Appelez-nous	-
28	2188515		Shelf Bin		Appelez-nous	-
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
34	2005610		Seal		Appelez-nous	-
