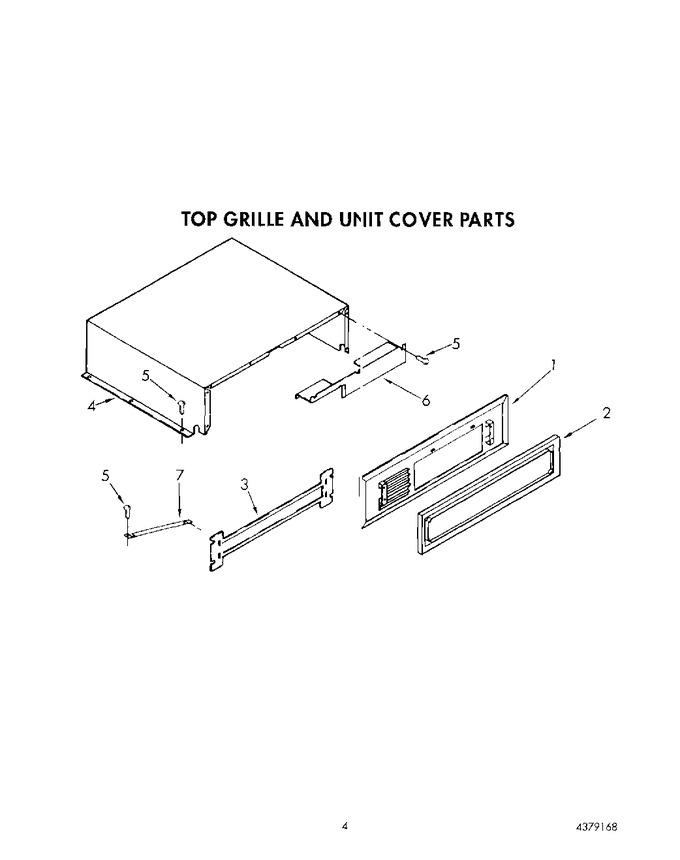

SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Top Grille And Unit Cover


04 - Refrigerator Liner


05 - Freezer Liner


06 - Refrigerator Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Refrigerator Door


10 - Freezer Door


11 - Upper Unit


12 - Lower Unit And Tube


13 - Air Flow


14 - Icemaker, Lit/optional


15 - Freezer Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001578		Top Grille Assembly		Appelez-nous	-
2	2001316		Decorative Panel Assembly		Appelez-nous	-
3	1113355		Back Up Panel		Appelez-nous	-
4	2001088		Cover, Unit		Appelez-nous	-
5	481694		Screw, 8 X 1/2		Appelez-nous	-
6	1113300		Cover, Component Assembly		Appelez-nous	-
7	1113317		Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
