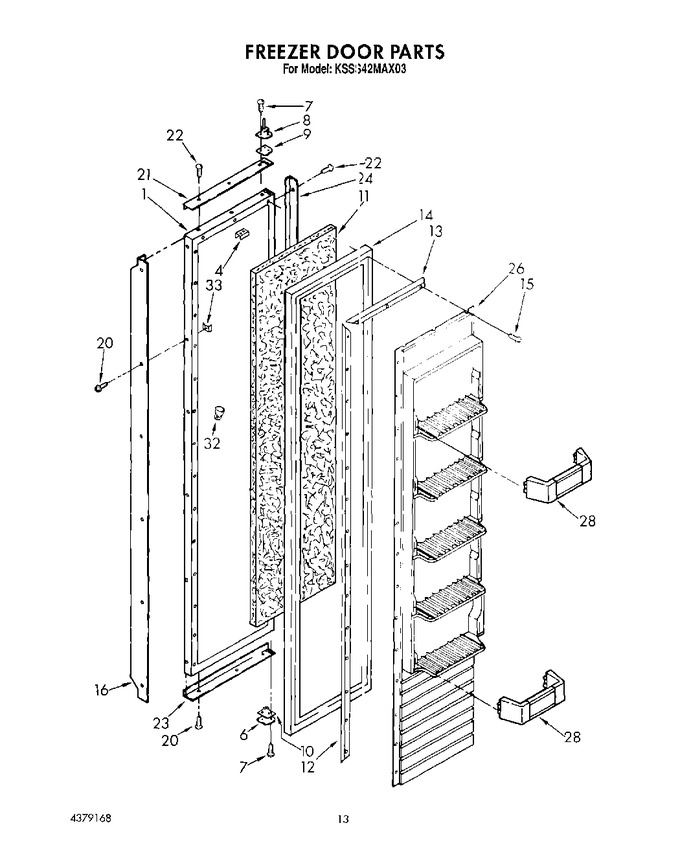

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000715		Exterior Door Panel, Freezer (also Order Item 11)		Appelez-nous	-
4	2000349		Tap, Plate		Appelez-nous	-
6	2000720		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2000721		Hinge, Top		Appelez-nous	-
9	2000303		Spacer Plate		Appelez-nous	-
10	2000697		Spacer, Bottom		Appelez-nous	-
11	876029		Foam Insulation (required When Replacing Exterior Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188318A		Door Gasket, Magnetic   (Replaces: 2000879)				$ 350.60
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 8.40
16	2000324		Handle, Door		Appelez-nous	-
20	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 8.28
21	2000327		Trim (top)		Appelez-nous	-
22	489112		Screw, 6-32 X 1/2		Appelez-nous	-
23	2000330		Trim (bottom)		Appelez-nous	-
24	2000325		Trim (side)		Appelez-nous	-
26	2000178		Panel, Interior Door		Appelez-nous	-
28	WP2003128		Door Shelf, (4)   (Replaces: 2000605)				$ 227.24
32	227991		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
