01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

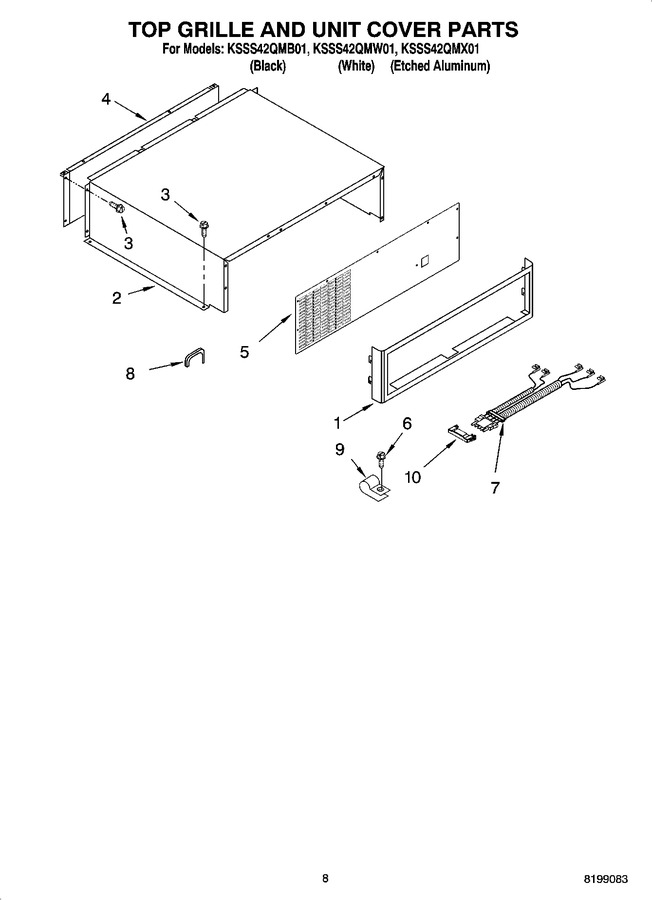

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257402W		Top Grille Assembly (white)		Appelez-nous	-
1	2257402B		Top Grille Assembly (black)		Appelez-nous	-
1	2257402X		Top Grille Assembly (etched Aluminum)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	2302974		Cover, Unit Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187429		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
8	2215910		Grommet, Flexible				$ 94.32
9	489348		Clamp, Tube		Appelez-nous	-
10	2221297		Enclosure, Terminal		Appelez-nous	-
