SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts

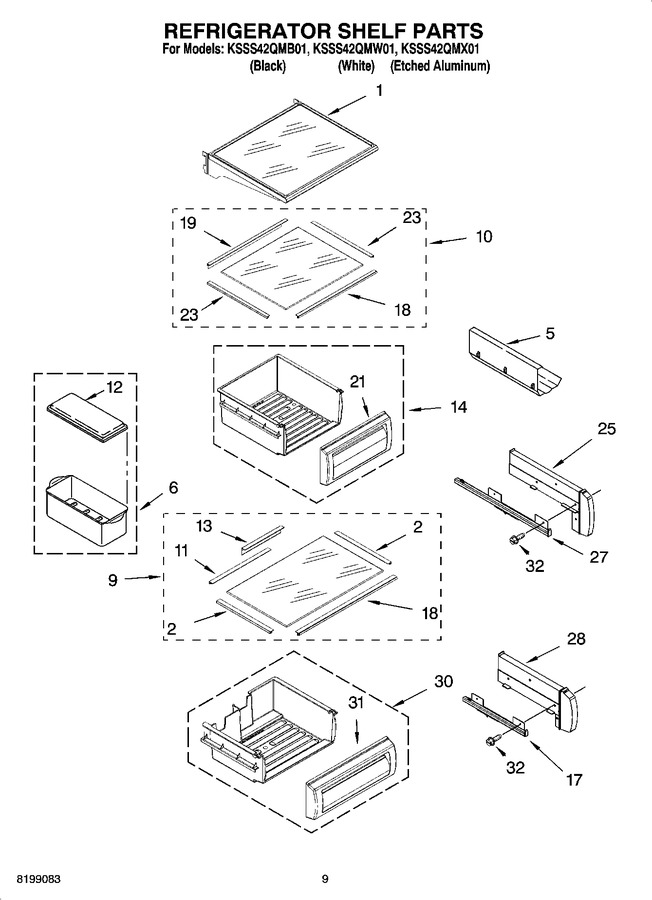

07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222592		Shelf Assembly		Appelez-nous	-
2	2256250		Trim, Glass (side) (meat Pan)		Appelez-nous	-
5	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
6	WP2221071A		Egg Bin   (Replaces: 2221071)				$ 25.79
9	2302842		Meat Pan Cover Assembly		Appelez-nous	-
10	W10849998		Crisper Cover Assembly   (Replaces: 2302835)				$ 284.27
11	2257611		Trim Glass		Appelez-nous	-
12	2169935		Cover		Appelez-nous	-
13	2257582		Trim, Glass (rear)		Appelez-nous	-
14	W10407624		Crisper Pan   (Replaces: 2252412)				$ 177.44
17	2302955		Slide, Meat Pan (right Side)				$ 343.18
17	2302954		Slide, Meat Pan (left Side)				$ 343.49
19	2256254		Trim, Glass (rear)		Appelez-nous	-
21	2256248		Front, Crisper Pan		Appelez-nous	-
23	2252255		Trim, Side Glass		Appelez-nous	-
25	2256223		Crisper Spacer, 2256222 Right Side (2) (left Side (2))				$ 84.49
27	2302956		Slide, Crisper (left Side) (2)				$ 298.73
27	2302957		Slide, Crisper (right Side) (2)				$ 228.33
28	2256244		Spacer, Meat Pan (right Side)				$ 103.70
28	2256243		Spacer, Meat Pan (left Side)				$ 83.04
30	W10407627		Meat Pan Assembly   (Replaces: 2256369)				$ 175.77
31	WP2256366		Front, Meat Pan   (Replaces: 2256366)				$ 190.12
32	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
32	WP8533928		Screw (left Side (8-18 X .75))   (Replaces: 8533928)			Immediately	$ 8.26

    View Diagram in Separate Window       Print Part List
