SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

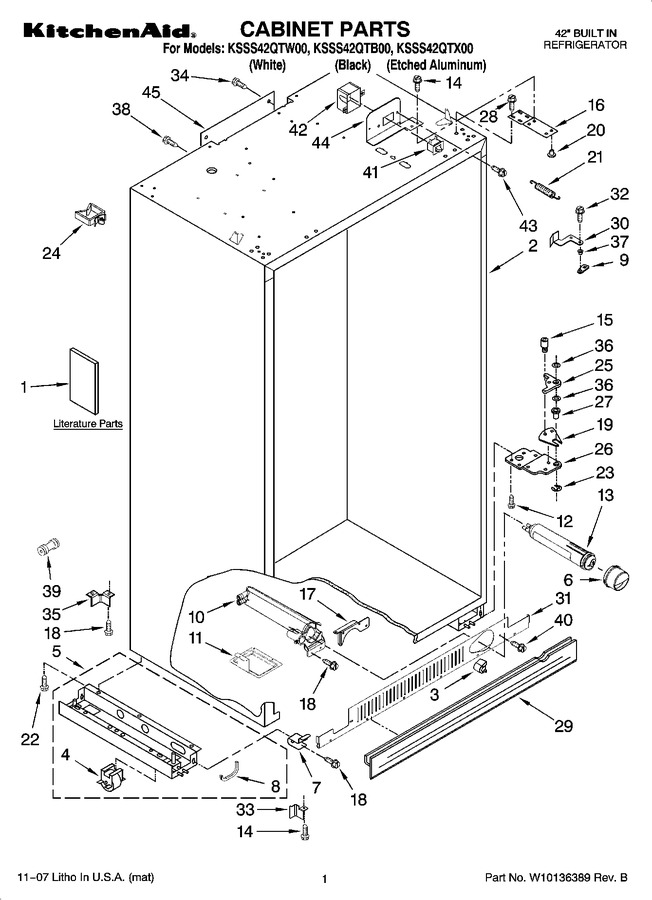

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316565		Installation Instructions		Appelez-nous	-
1	2316571		Use & Care Guide		Appelez-nous	-
1	2316573		Energy Guide		Appelez-nous	-
1	2316566		Service & Wiring Sheet		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	2318069		Main Control Service Sheet		Appelez-nous	-
3	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 45.34
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2318194)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2318193)				$ 381.83
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
7	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 43.26
8	2307584		Grommet, Crossover Tube				$ 23.40
9	2005783		Cam, Door Closer				$ 26.20
10	WPW10121140		Housing, Water Filter   (Replaces: 2260526)			Immediately	$ 171.96
11	2318189		Tray, Drip Filter				$ 148.73
12	3400525		Screw				$ 12.83
13	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
14	WP489399		Screw   (Replaces: 489399)				$ 7.30
15	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 12.77
16	2257644		Hinge (top)				$ 177.98
17	W11755873		Bracket, Mtg. (water Filter)   (Replaces: 2318190)				$ 80.33
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
19	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 8.39
20	2300082		Bushing				$ 13.44
21	WP2004517		Spring, Door Closure (left Side)   (Replaces: 2004517)			Immediately	$ 95.43
21	W11805224		Spring, Door Closure (right Side)   (Replaces: 2221242)		Appelez-nous	-
22	W11624204		Screw   (Replaces: 486194)				$ 14.72
23	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.78
24	W10129069		Wire Clip (5)		Appelez-nous	-
25	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
26	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 299.33
26	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 137.73
27	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
28	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)			Immediately	$ 14.78
29	2209025W		Skirt-grille, Bottom (white)		Appelez-nous	-
29	2209025B		Skirt-grille, Bottom (black)				$ 48.90
30	W11298172		Extension Arm, Door Closer (left)   (Replaces: 2266881)			Immediately	$ 87.43
30	W10847927		Extension Arm, Door Closer (right)   (Replaces: 2266882)				$ 99.91
31	2325185W		Grille Bottom, Front (white)		Appelez-nous	-
31	2325185B		Grille Bottom, Front (black)				$ 78.44
32	2005921		Screw				$ 7.65
33	2006616		Bracket, Support Base (front) (left)				$ 91.53
33	2006556		Bracket, Support Base (front) (right)				$ 37.20
34	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
35	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
36	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.76
37	WP2316859		Bushing, Extension Arm   (Replaces: 2266880)			Immediately	$ 54.20
38	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
39	WP4373559		Connector, Water Tube (5/16-1/4``)   (Replaces: 2209709)				$ 81.22
39	WP2300868		Connector, Water Tube (1/4``)   (Replaces: 2300868)			Immediately	$ 29.05
40	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
41	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 40.09
41	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 39.09
42	2215938		Cover, Switch (2)				$ 94.78
43	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 11.87
44	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 67.37
44	2221096		Bracket, Switch (left)				$ 97.86
45	2215612		Cover, Rear		Appelez-nous	-
