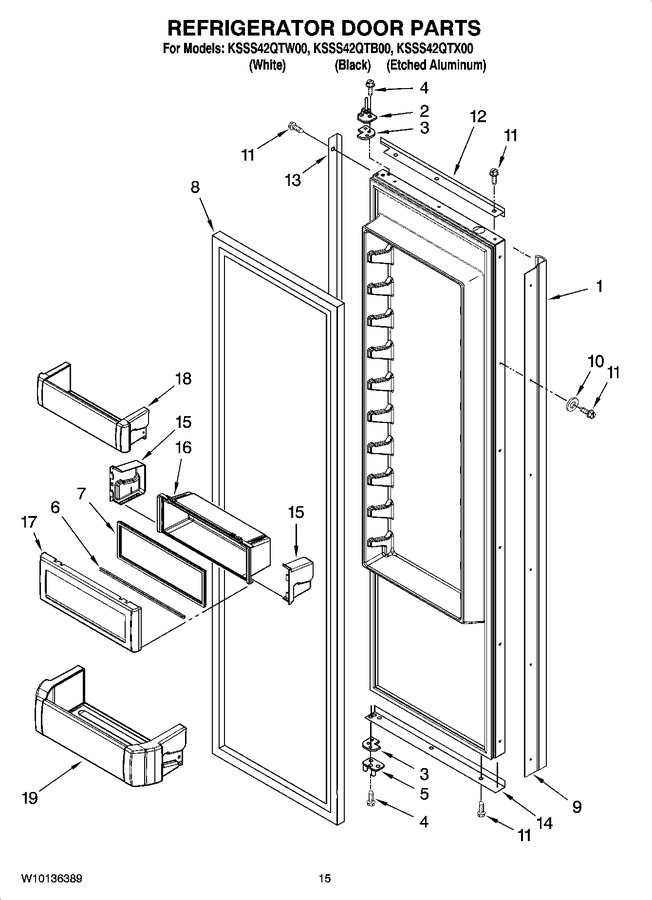

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door (includes 8)		Appelez-nous	-
2	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
3	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
6	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
7	W11448696		Gaasket, Utility Bin   (Replaces: 2222982)				$ 153.99
8	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
9	2316842S		Handle, Door (stainless Steel)				$ 224.10
9	2316842B		Handle, Door (black)		Appelez-nous	-
9	2316842W		Handle, Door (white)		Appelez-nous	-
10	2001230		Washer				$ 12.34
11	W10825422		Screw, 8-15 X .500   (Replaces: 8281251)				$ 11.36
12	2005840		Trim, Door (top) (black)		Appelez-nous	-
12	2005014		Trim, Door (top) (white)		Appelez-nous	-
12	2005017		Trim-door, Top (brushed Aluminum)		Appelez-nous	-
13	2005971		Trim-door, Side (black)		Appelez-nous	-
13	2005968		Trim-door, Side (white)		Appelez-nous	-
13	2005969		Trim-door, Side (brushed Aluminum)		Appelez-nous	-
14	2215994B		Trim, Door (bottom) (black)		Appelez-nous	-
14	2215994W		Trim, Door (bottom) (white)		Appelez-nous	-
14	2215994S		Trim-door, Bottom (stainless Steel)		Appelez-nous	-
15	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
15	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
16	W10323042		Bin, Utility (center)   (Replaces: 2222922)				$ 223.93
17	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
18	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 146.61
19	W10323747		Bin, Door   (Replaces: 2222770)				$ 145.36
