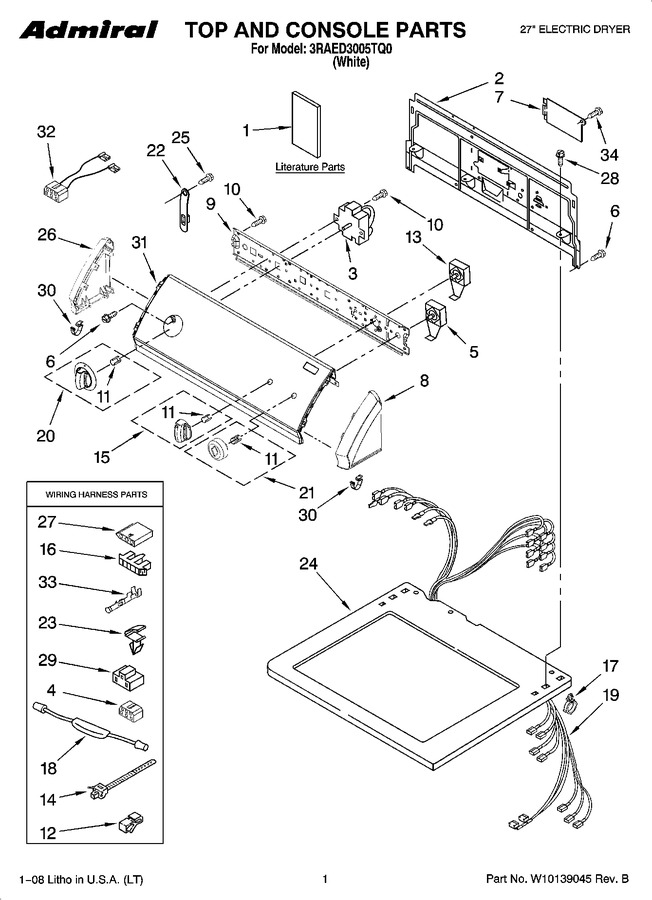

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131549 | Installation & User Guide |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10135016 | Wiring Diagram |
|
- | |||||
| 1 | W10131578 | Guide, Use & Care |
|
- | |||||
| 1 | W10131581 | Instructions, Installation |
|
- | |||||
| 2 | W10121161 | Panel, Rear Console |
|
- | |||||
| 3 | WPW10116281 | Timer (Replaces: W10116281) |
|
$ 326.21 | |||||
| 4 | 3347243 | Connector 6-circuit |
|
- | |||||
| 5 | W10119074 | Switch, Push-to-start |
|
- | |||||
| 6 | 3400859 | Screw, 8-18 X 3/8 (Replaces: W10080810) |
|
$ 13.88 | |||||
| 7 | WPW10119283 | Cover, Terminal Block (Replaces: W10119283) |
|
$ 134.77 | |||||
| 8 | W10128463 | Cap, End (r.h.) |
|
- | |||||
| 9 | 8559504 | Bracket, Control |
|
- | |||||
| 10 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 11 | WP8536939 | Spring, Clip (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 11.37 | |||||
| 13 | W11235848 | Switch, Temperature (Replaces: W10168168) |
|
- | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 15 | WPW10110063 | Knob, Control (Replaces: W10110063) |
|
Immediately | $ 59.13 | ||||
| 16 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 17 | 8559320 | Clip-push In Harness (Replaces: 3352501) |
|
$ 48.14 | |||||
| 18 | 279872 | Resistor, Assembly (Replaces: 8283170) |
|
$ 78.69 | |||||
| 19 | W10135021 | Harness, Wiring |
|
- | |||||
| 20 | W10110064 | Timer Knob Assembly |
|
$ 26.97 | |||||
| 21 | W10110065 | Knob, Push-to-start |
|
$ 87.57 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8318255) |
|
$ 8.17 | |||||
| 23 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 24 | 8559781 | Top |
|
- | |||||
| 25 | W10080280 | Screw, 8-18 X 1/2 |
|
- | |||||
| 26 | W10128464 | Cap, End (l.h.) |
|
- | |||||
| 27 | 3936144 | Connector |
|
$ 21.22 | |||||
| 28 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 29 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 30 | WP8312709 | Clip, Console (Replaces: W10129041) |
|
Immediately | $ 16.35 | ||||
| 31 | W10123195 | Panel, Control |
|
- | |||||
| 32 | 8539893 | Wire, Jumper Assembly |
|
$ 19.78 | |||||
| 33 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 34 | W10130935 | Screw, 8-32 X 5/16 |
|
- |
