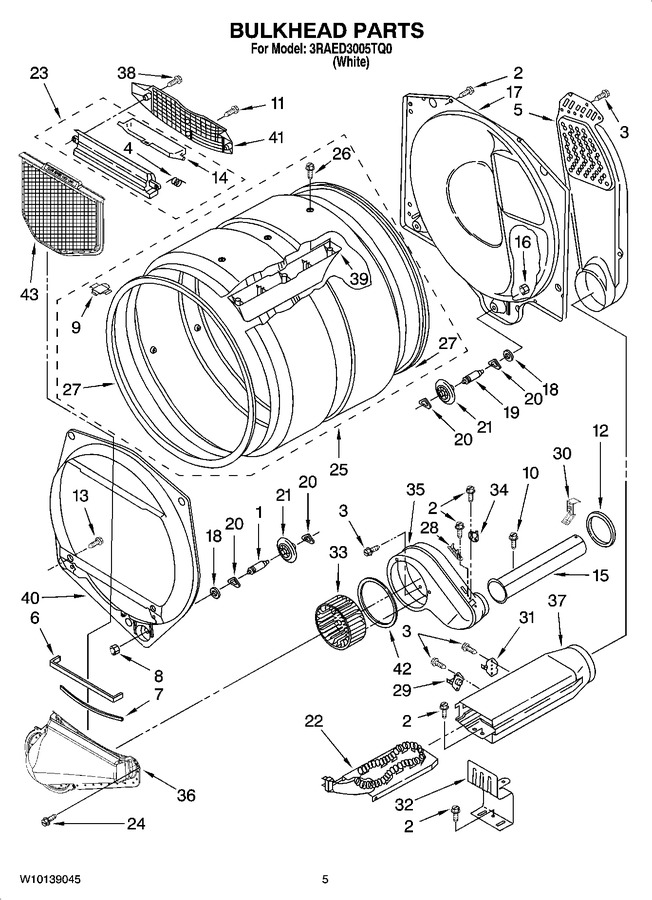

03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 62.21
2	WP489464		Screw, 8-18 X 1/2   (Replaces: W10080700)			Immediately	$ 7.83
3	W10080280		Screw, 8-18 X 3/8		Appelez-nous	-
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
5	WP3387911		Air Duct Assembly   (Replaces: 697354)				$ 311.72
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	W11812294		Nut 3/8 X 16 (r.h.)   (Replaces: W10080210)				$ 12.16
9	8066086		Drum Hole Plug				$ 10.75
10	W10080820		Screw, 8-18 X 5/16		Appelez-nous	-
11	W10080360		Screw, 8-15 X 1/2		Appelez-nous	-
12	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
13	W10080640		Screw, 10-16 X 3/4		Appelez-nous	-
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 203.72
15	W10121167		Exhaust Pipe		Appelez-nous	-
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10080190)			Immediately	$ 8.49
17	W11299300		Bulkhead, Rear   (Replaces: 3387809)				$ 350.11
18	W11236646		Washer, Support   (Replaces: W10080960)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 58.48
20	WPW10512946		Ring Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
22	8318459		Heater Element				$ 124.54
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.28
24	W10080380		Screw, 8-18 X 5/8		Appelez-nous	-
25	W10545923		Complete Drum Assembly   (Replaces: 8528998)				$ 436.76
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: W10109200)			Immediately	$ 8.00
27	280114		Seal, Drum   (Replaces: W10166807)			Immediately	$ 70.82
28	WP8572767		Thermal-limiter (89 C)   (Replaces: 8572767)			Immediately	$ 56.01
29	WPW10168175		Thermostat 250 F / 170f Nc   (Replaces: W10168175)				$ 123.84
30	W11684573		Clip-exhaust   (Replaces: 8572105)				$ 7.78
31	W10154212		Thermal Cut-off   (Replaces: W10141623)				$ 116.82
32	8066099		Bracket, Heater				$ 24.35
33	WPW10349492		Wheel, Blower   (Replaces: W10168564)			Immediately	$ 120.33
34	WPW10168174		Thermostat Internal Bias   (Replaces: W10168174)				$ 136.73
35	WP8544363		Housing, Blower   (Replaces: W10151271)				$ 152.63
36	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 207.12
37	W10802681		Heater Box   (Replaces: 3392537)			Immediately	$ 129.67
38	W10080590		Screw, 10-16 X 1/2		Appelez-nous	-
39	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 91.02
40	WP697557		Bulkhead, Front   (Replaces: 697557)				$ 208.03
41	W11086603		Grill, Outlet   (Replaces: 8299979)			Immediately	$ 35.14
42	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
43	W10120998		Lint, Screen   (Replaces: W10049370)				$ 67.16
NI	4392067		Kit, Dryer Repair			Immediately	$ 62.25
NI	8212450A		Dry Rack   (Replaces: 3406911)			Immediately	$ 83.99
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
