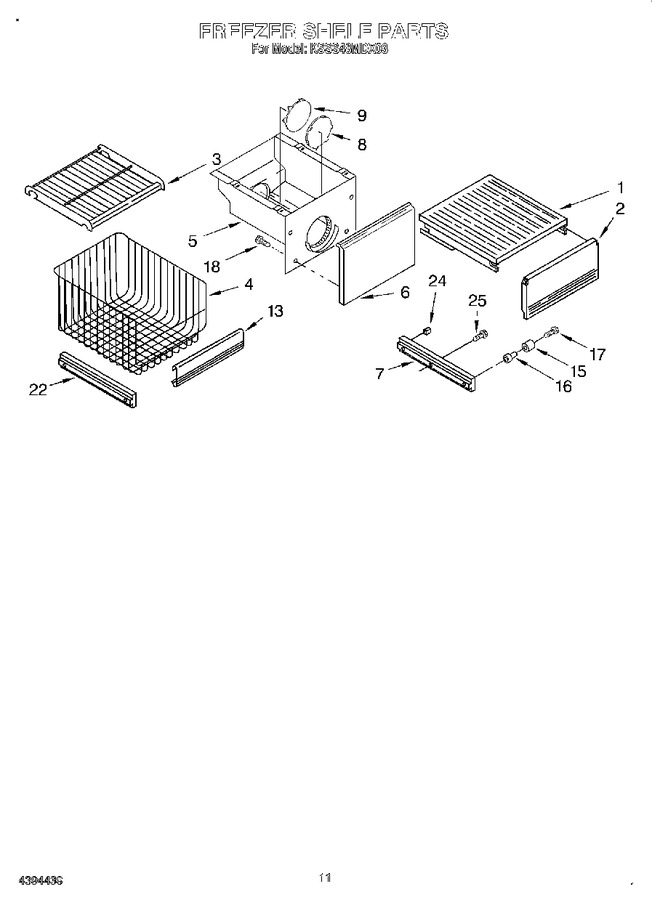

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003144		Solid Shelf		Appelez-nous	-
2	2003135		Front, Ice Compartment		Appelez-nous	-
3	1113638		Shelf, Fixed (2)		Appelez-nous	-
3	1112052		Shelf, Fixed-deep		Appelez-nous	-
4	2004592		Basket (2)		Appelez-nous	-
5	2002727		Ice Container		Appelez-nous	-
6	2003045		Front Cover				$ 147.78
7	2002720		Slide, Container (right Side)		Appelez-nous	-
7	2002721		Slide, Container (left Side)		Appelez-nous	-
8	2003046		Hole Plug, Front				$ 78.19
9	2003047		Hole Plug, Rear				$ 19.73
13	2003114		Trim, Basket		Appelez-nous	-
15	2174388		Roller		Appelez-nous	-
16	2174478		Eyelet, Roller				$ 5.70
17	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
18	WP488787		Screw   (Replaces: 488886)				$ 11.26
22	2181760		Basket Slide (right Side)		Appelez-nous	-
22	2181759		Basket Slide (left Side)		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
