SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Airflow And Reservoir


15 - Icemaker, Lit/optional

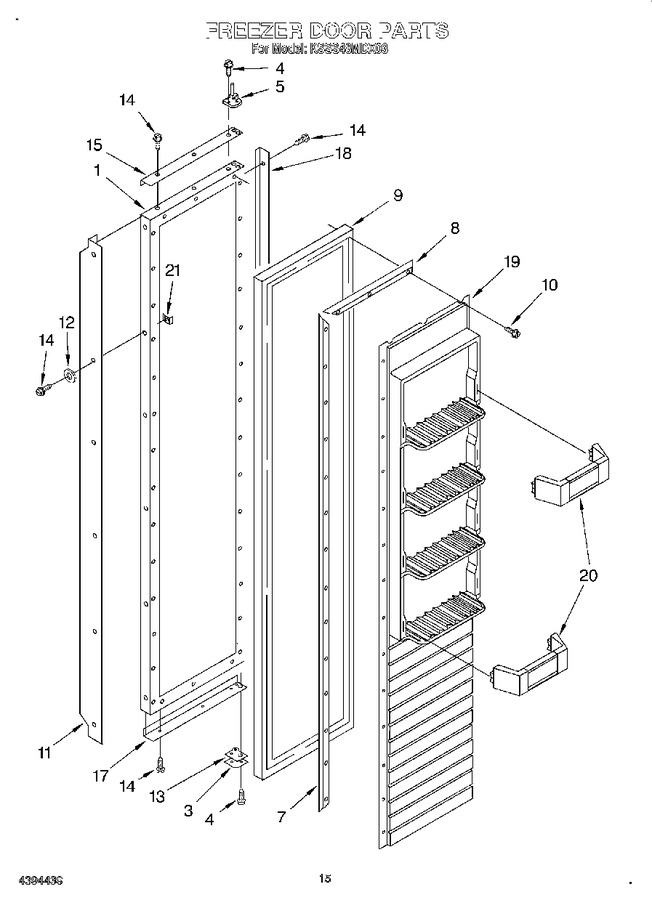

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003878		Freezer Door Panel (includes Insulation)		Appelez-nous	-
3	2003985		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
5	2001984		Hinge, Top		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 316.41
10	W11624204		Screw (36)   (Replaces: 486194)				$ 14.02
11	2003681		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2003982		Door, Spacer		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
15	2003659		Trim (top)		Appelez-nous	-
17	2003671		Trim (bottom)		Appelez-nous	-
18	2003677		Trim (side)		Appelez-nous	-
19	2000179		Panel, Interior Door		Appelez-nous	-
20	2003129		Shelf Bin (4)				$ 57.57
21	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50

    View Diagram in Separate Window       Print Part List
