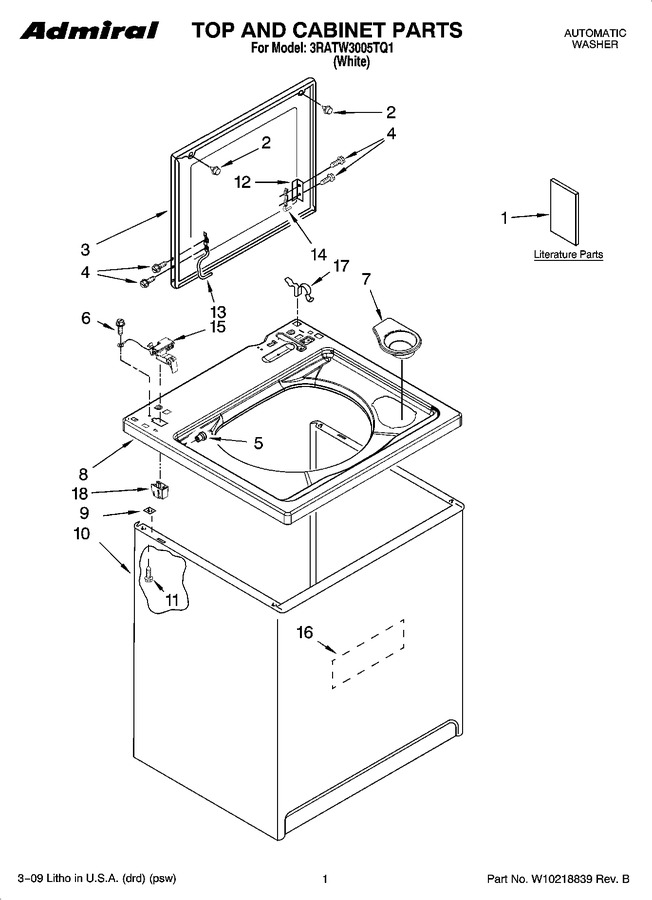

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10106690		Wiring Diagram		Appelez-nous	-
1	W10131584		Energy Guide		Appelez-nous	-
1	W10131547		Feature Sheet		Appelez-nous	-
1	W10131569		Installation Instructions		Appelez-nous	-
1	W10131568		Use & Care Guide		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
3	W10115243		Lid		Appelez-nous	-
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
5	8319539		Bearing, Lid Hinge (2)				$ 5.51
6	W10080580		Screw, Ground		Appelez-nous	-
7	8565967		Dispenser, Bleach		Appelez-nous	-
8	8566016		Top		Appelez-nous	-
9	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
10	63424		Cabinet				$ 370.02
11	W10165554		Screw, 10-16 X 3/8 (4)				$ 11.55
12	WP21097		Pad, Lid Hinge   (Replaces: 21097)				$ 7.80
13	W10225136		Hinge, Lid (l.h.)				$ 26.22
14	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
15	W10237162		Switch, Lid		Appelez-nous	-
16	W11096159		Cabinet - Damper, Sound   (Replaces: W10177046)				$ 27.36
17	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
18	W10180691		Shield, Lid Switch		Appelez-nous	-
