Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10116916 Gearcase (complete) Appelez-nous -
2 285202 Cover, Gearcase Appelez-nous -
3 WP3349985 Seal, Gearcase Cover   (Replaces: 3349985) In-Stock Immediately $ 26.21

4 WP285195 Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195) In-Stock Immediately $ 104.39

5 3360629 Pinion, Spin (includes Item 25)   (Replaces: 63320) In-Stock Immediately $ 469.13

6 WP356427 Seal, Spin Pinion   (Replaces: 356427) In-Stock Immediately $ 7.19

7 WP389387 Shaft, Agitator (complete)   (Replaces: W10116913) Special Order $ 269.70

8 90369 Ring, Retaining (2) Special Order $ 5.04

9 62677 Retainer, Spring (2) Special Order $ 6.25

10 62676 Spring, Agitate Special Order $ 56.99

11 WP389387 Gear, Agitate (includes Items 15 & 19   (Replaces: W10110245) Special Order $ 269.70

12 W10080940 Washer, Agitate Gear Appelez-nous -
13 WP389387 Cam Follower (includes Item 14)   (Replaces: 62580) Special Order $ 269.70

14 WP389387 Cam, Agitate (includes Item 13)   (Replaces: 3976349) Special Order $ 269.70

15 389231N Shaft, Agitator   (Replaces: 389231) Appelez-nous -
16 62618 Washer, Cam Thrust Appelez-nous -
17 285205 Bearing, Thrust (includes Item 18)   (Replaces: 16018) Special Order $ 7.52

18 285205 Ball, Bearing (includes Item 17)   (Replaces: 85529) Special Order $ 7.52

19 W10080950 Washer, Intermediate Appelez-nous -
21 285352 Seal, Thrust Plug In-Stock Immediately $ 42.25

22 W10080580 Screw, Gearcase Cover Mounting (8) (10-24 X 3/8) Appelez-nous -
23 3946619 Ring, Retaining Appelez-nous -
24 285766 Washer Kit, Thrust Appelez-nous -
25 WPW10233584 Gear, Spin   (Replaces: 63400) Special Order $ 242.91

26 3948434 Neutral Assembly Appelez-nous -
27 3360629 Rack, Connecting   (Replaces: 8546456) In-Stock Immediately $ 469.13

28 3360629 Actuator, Shift   (Replaces: 62621) In-Stock Immediately $ 469.13

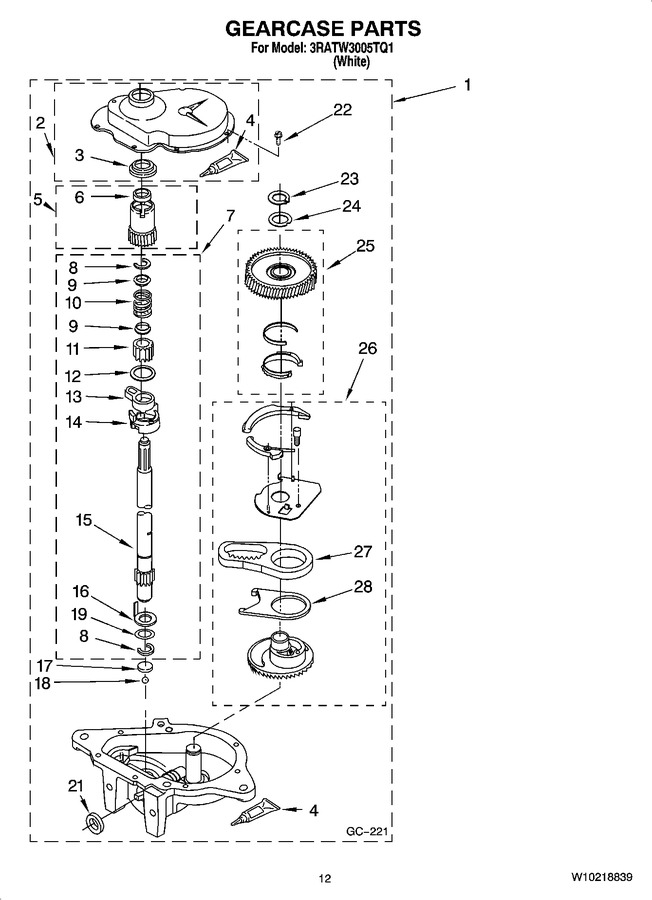

    View Diagram in Separate Window     Print Icon   Print Part List
