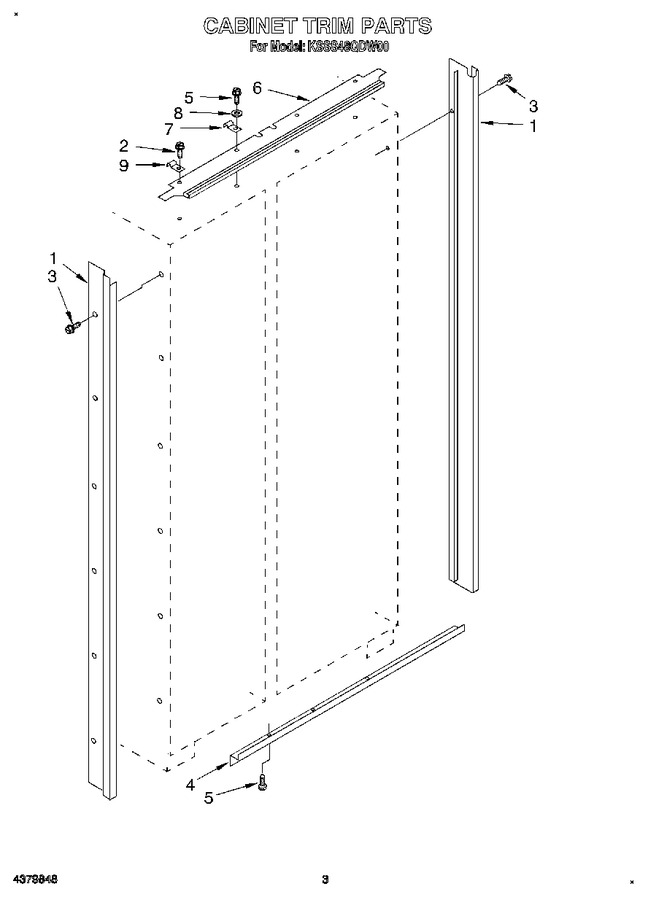

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2002195		Cabinet, Trim (2)		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 14.02
3	2001297		Screw		Appelez-nous	-
4	2001190		Cabinet, Trim (bottom)		Appelez-nous	-
5	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
6	2002233		Cabinet, Trim Top		Appelez-nous	-
7	2000007		Retainer, Unit Base (2)		Appelez-nous	-
8	487944		Washer (2)		Appelez-nous	-
9	2002474		Retainer Clip		Appelez-nous	-
