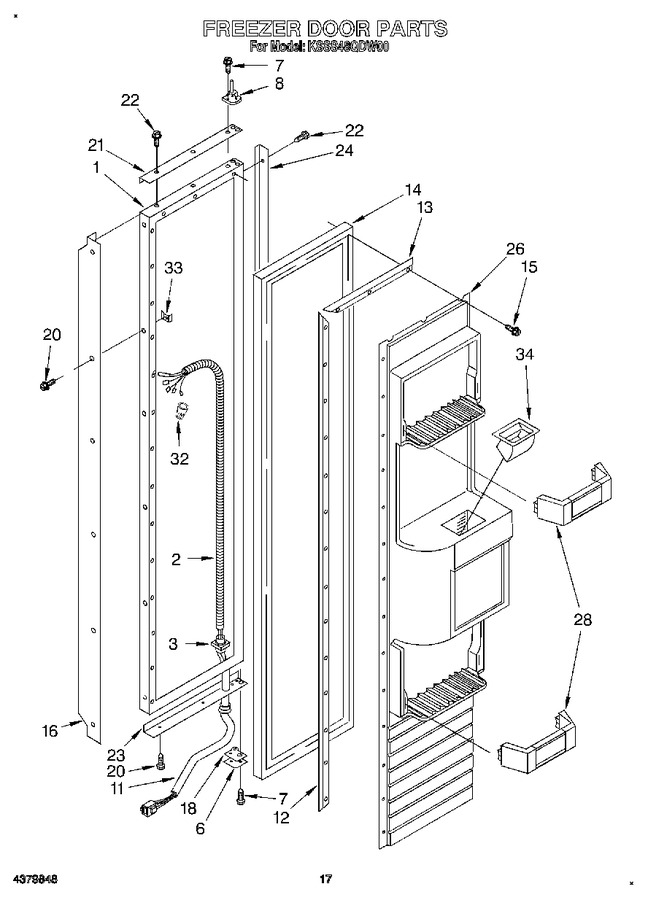

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2002864		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
6	2002074		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2001984		Hinge, Top		Appelez-nous	-
11	2003475		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 332.23
15	WP489069		Screw (36)   (Replaces: 489089)			Immediately	$ 8.40
16	2002227		Handle, Door		Appelez-nous	-
18	2002007		Door, Spacer		Appelez-nous	-
20	2001208		Screw		Appelez-nous	-
21	2002205		Trim (top)		Appelez-nous	-
22	2001209		Screw		Appelez-nous	-
23	2002953		Trim (bottom)		Appelez-nous	-
24	2002199		Trim (side)		Appelez-nous	-
26	2002840		Panel, Interior Door		Appelez-nous	-
28	2003129		Shelf Bin (2)				$ 57.57
32	547217		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
34	2002733		Ice Chute		Appelez-nous	-
