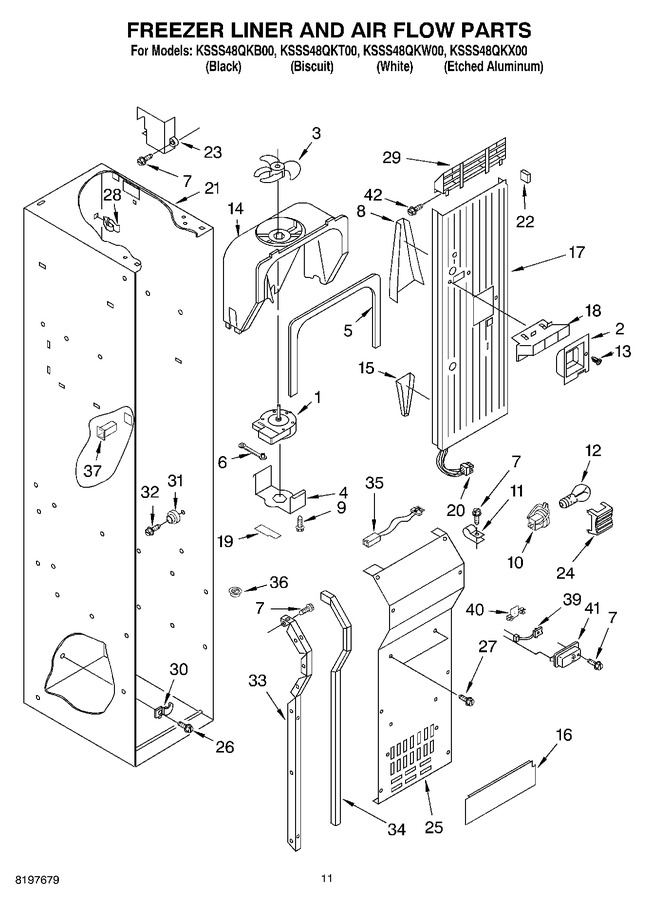

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2208939 | Fan Motor |
|
- | |||||
| 2 | 2002732 | Cup, Clearance |
|
- | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 5 | WP2155789 | Gasket Cover (Replaces: 2155789) |
|
$ 7.79 | |||||
| 6 | 8201663 | Grommet (Replaces: 2208968) |
|
$ 159.27 | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 8 | 2003924 | Deflector, Air Duct |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 10.88 | |||||
| 10 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 11 | 488937 | Clamp, Nylon |
|
- | |||||
| 12 | W10887190 | Light Bulb (Replaces: 2160708) |
|
Immediately | $ 18.31 | ||||
| 13 | 1112871 | Fastner |
|
- | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 111.97 | ||||
| 15 | 2003929 | Deflector, Air Duct |
|
- | |||||
| 16 | 2215612 | Cover, Air Duct |
|
- | |||||
| 17 | 2209333 | Assembly, Air Duct |
|
- | |||||
| 18 | 2182146 | Duct, Icemaker |
|
$ 88.84 | |||||
| 19 | 2209482 | Block, Fan Scroll (right) |
|
- | |||||
| 19 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 20 | 2209318 | Harness, Wire |
|
- | |||||
| 21 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 22 | 1112869 | Gasket, Air Baffle |
|
- | |||||
| 23 | 2215718 | Cover, Air Outlet |
|
- | |||||
| 24 | 2198589 | Light Shield |
|
- | |||||
| 25 | 2208991 | Cover, Evaporator |
|
- | |||||
| 26 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 28 | 2215823 | Clip, Air Duct (4) |
|
$ 10.94 | |||||
| 29 | 2208929 | Diffuser, Air Duct |
|
- | |||||
| 30 | 1112260 | Support,evaporator |
|
- | |||||
| 31 | WP2196483 | Shelf, Stud (20) (Replaces: 2196483) |
|
$ 10.35 | |||||
| 32 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 | |||||
| 33 | 2208979 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 33 | 2208980 | Evaporator, Cover Rail (right Side) |
|
- | |||||
| 34 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 23.55 | |||||
| 35 | 2221077 | Wire, Jumper |
|
- | |||||
| 36 | WP2210509 | Release Valve (Replaces: 2171931) |
|
$ 94.43 | |||||
| 37 | 2209220 | Tube, Meat Pan |
|
- | |||||
| 39 | WP2188820 | Thermistor (Replaces: 2213442) |
|
Immediately | $ 30.85 | ||||
| 40 | 2209204 | Clip, Thermistor |
|
- | |||||
| 41 | 1116793 | Cover, Thermistor |
|
$ 14.63 | |||||
| 42 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 |
