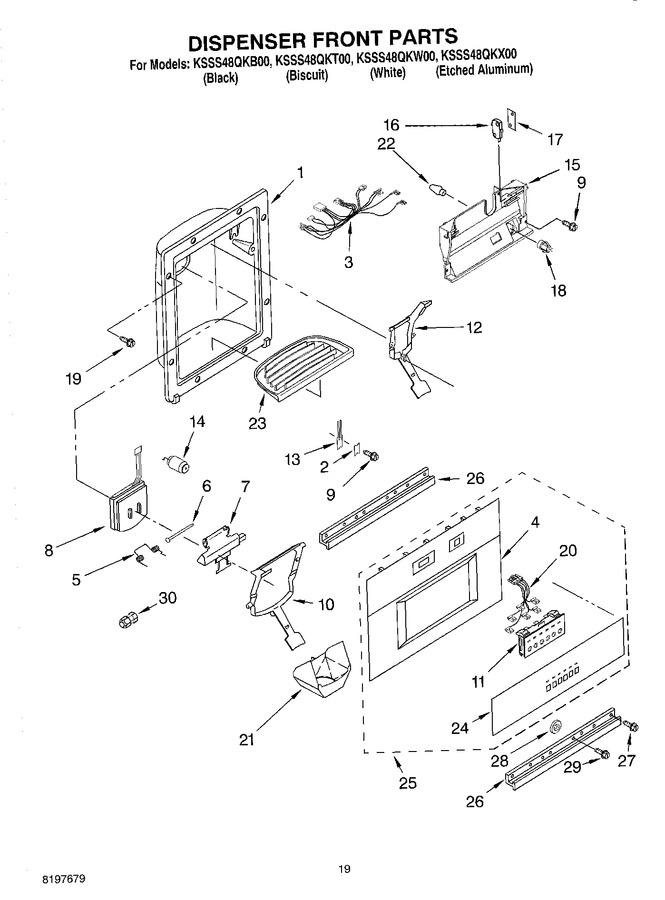

11 - Freezer Door


12 - Dispenser Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186849		Housing, Dispenser (biscuit)		Appelez-nous	-
1	2180220		Housing, Dispenser (white)		Appelez-nous	-
2	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
3	2202585		Wire Assembly		Appelez-nous	-
5	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 83.24
6	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
7	2206423		Ice Door Mechanism		Appelez-nous	-
8	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 24.69
9	WP3400906		Screw   (Replaces: 489000)				$ 7.84
10	2180259		Lever, Ice Dispenser (white)				$ 42.12
10	2186850		Lever, Ice Dispenser (biscuit)		Appelez-nous	-
10	2180261		Lever, Ice Dispenser (black)		Appelez-nous	-
11	WP2180236		Switch Assembly   (Replaces: 2180236)				$ 274.29
12	WPW10152858		Lever, Water Dispenser (biscuit)   (Replaces: 2186852)				$ 104.60
12	WPW10152859		Lever, Water Dispenser (black)   (Replaces: 2180270)			Immediately	$ 97.92
12	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2180268)				$ 104.60
13	WP2194719		Spring, Lever   (Replaces: 2194719)			Immediately	$ 11.77
14	2205686		Delay Mechanism		Appelez-nous	-
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 27.34
17	625834		Insulation, Switch				$ 7.99
18	2180200		Lamp Holder				$ 98.66
19	WP489128		Screw   (Replaces: 488500)				$ 10.88
20	2311650		Wire Assembly   (Replaces: 2196199)				$ 89.68
21	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
22	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
23	WP2180325		Grille, Overflow (black)   (Replaces: 2180325)			Immediately	$ 69.00
23	2180323		Grille, Overflow (white)				$ 30.68
23	2186860		Grille, Overflow (biscuit)		Appelez-nous	-
25	2220988T		Front Cover Assembly (includes Items 4, 11, 20 & 24) (biscuit)		Appelez-nous	-
25	2220988W		Front Cover Assembly (includes Items 4, 11, 20 & 24) (white)		Appelez-nous	-
25	2220988B		Front Cover Assembly (includes Items 4, 11, 20 & 24) (black)		Appelez-nous	-
26	2208928		Trim, Front (2) (black)		Appelez-nous	-
26	2208919		Trim, Front (2) (white)		Appelez-nous	-
26	2208925		Trim, Front (2) (biscuit)		Appelez-nous	-
27	W10825422		Screw 8-15 X 1/2 (white)   (Replaces: 8281251)				$ 10.82
27	W10851443		Screw 8-15 X 1/2 (black)   (Replaces: 8281252)			Immediately	$ 7.69
27	8281253		Screw 8-15 X 1/2 (biscuit)		Appelez-nous	-
27	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 10.88
28	487944		Washer		Appelez-nous	-
29	W10759522		Screw 8-15 X 3/4   (Replaces: 488568)				$ 7.75
30	WP4211117		Union   (Replaces: 2150347)				$ 9.96
