SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor (series 10)


03 - Compressor (series 11)


04 - Controls


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Ice Maker


08 - Interior Cabinet & Freezer Shelves


09 - Refrigerator Door


10 - Refrigerator Shelves


11 - Supplemental Information


12 - Wiring Information (series 10)


13 - Wiring Information (series 11)

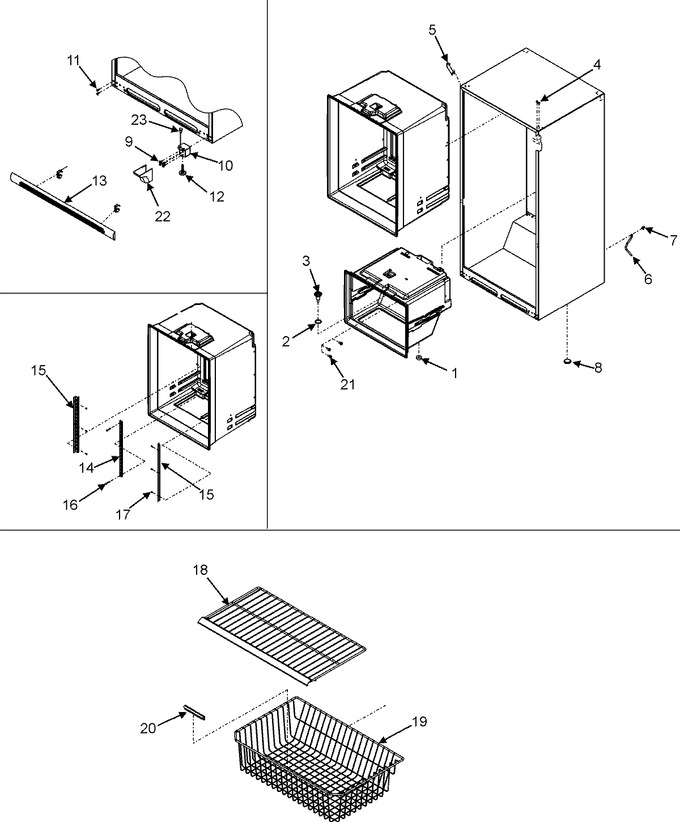

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.41
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 10.92
3	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 49.05
4	A4539607		Pop Rivet	10	Appelez-nous	-
5	67003484		Cover, Corner (wht)	10			$ 20.40
6	67001066		Tube, Drain	10			$ 55.82
7	67001067		Clip, Drain Tube	10			$ 9.20
8	A3076901		Plug-button	10			$ 5.70
9	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
10	67001069		Hinge, Bottom E-ct (wht)	10	Appelez-nous	-
11	WP67006715		Screw   (Replaces: M0233847)	10			$ 7.19
12	W11177593		Brake, Foot   (Replaces: 10354001)	10			$ 11.60
13	67002223		Toe Grille Assy (wht)	10	Appelez-nous	-
13	12627302		Clip, Toe Grille	10			$ 5.84
14	67001073		Ladder, Center	10			$ 54.18
15	67001317		Ladder, Sides	10			$ 39.13
16	W10709795		Screw   (Replaces: M0231425)	10			$ 13.13
17	67006425		Screw, Sm   (Replaces: M0238642)	10		Immediately	$ 6.95
18	67001075		Shelf, Frz.	10	Appelez-nous	-
19	67003330		Basket, Lower 33``	10	Appelez-nous	-
20	10508506		Handle, Basket/shelf	10	Appelez-nous	-
21	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
22	12561901W		Cover, Lwr Hinge (wht)	10			$ 6.37
23	M0310343		Plug, Button (wht)	10			$ 10.67

    View Diagram in Separate Window       Print Part List
