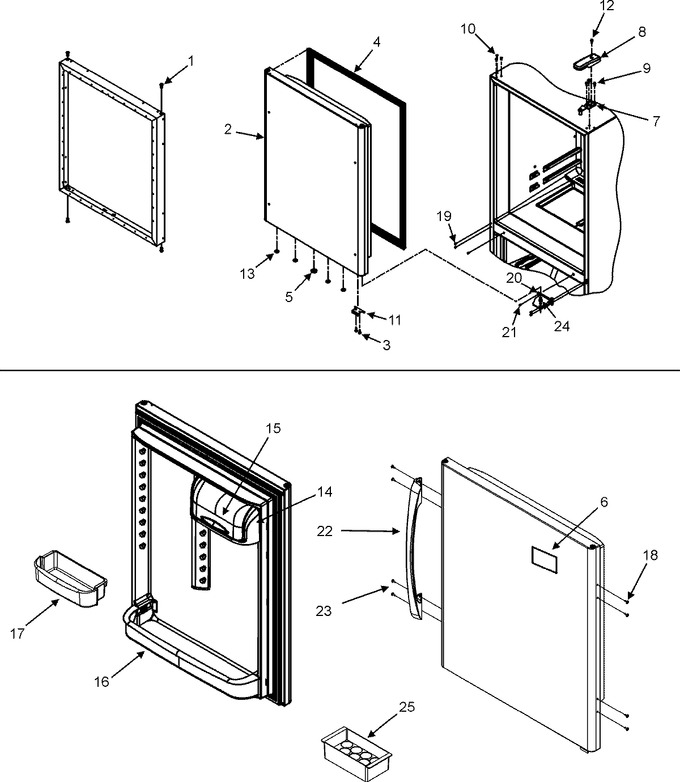

PBF2253HEW | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	WP67004977	Bushing, Door (wht) (Replaces: 67003368)	10			$ 8.20
2	67004363	Door Assy., Ref. Foam (wht)	10	Appelez-nous	-
3	WPW10348409	Screw, Mounting (Replaces: M0211533)	10		Immediately	$ 8.20
4	W10443313	Gasket, Ref Door (wht) (Replaces: 67003552)	10			$ 361.01
5	A3080002	Plug, Button (wht)	10	Appelez-nous	-
6	2324038	Nameplate (Replaces: 67003877)	10			$ 71.59
7	WP12566606ED	Hinge, Top (blk) (Replaces: 67001011)	10		Immediately	$ 47.13
8	67001014	Cover, Top Hinge (wht)	10			$ 22.34
9	R9800670	Screw, Tf (Replaces: M0238731)	10			$ 10.58
10	WP67001130	Plug, Top Hinge Button (wht) (Replaces: M0310729)	10		Immediately	$ 8.21
11	12968202W	Stop, Door (wht) (Replaces: 10447108)	10			$ 69.29
12	WP8281196	Screw-mach (Replaces: M0202327)	10		Immediately	$ 7.55
13	67001015	Plug, Button (wht)	10	Appelez-nous	-
14	WP67001279	Tray, Dairy (Replaces: 67001279)	10		Immediately	$ 88.01
15	WP67003637	Door, Dairy (Replaces: 67003637)	10		Immediately	$ 82.67
16	67001748	Retainer, Door	10	Appelez-nous	-
17	WPW10371194	Bucket Ref Dr Med (Replaces: 67003777)	10		Immediately	$ 77.23
18	WP67001130	Plug, Handle Hole (wht) (Replaces: 12246601)	10		Immediately	$ 8.21
19	WP489349	Screw, Tf (Replaces: M0239730)	10		Immediately	$ 8.43
20	W11689473	Hinge, Center (wht) (Replaces: 67001168)	10			$ 69.79
21	W11573362	Screw, T. F. (Replaces: M0226233)	10			$ 14.72
22	67004044	Handle Assy., Ref Door (wht)	10	Appelez-nous	-
23	67004046	Screw (wht)	10	Appelez-nous	-
24	WPM0274057	Shim, Non Metal (wht) (Replaces: M0274057)	10		Immediately	$ 8.40
24	WP67006744	Pin, Hinge (ctr) (Replaces: 10351001)	10			$ 8.68
25	67215-2	Tray, Egg	10	Appelez-nous	-
