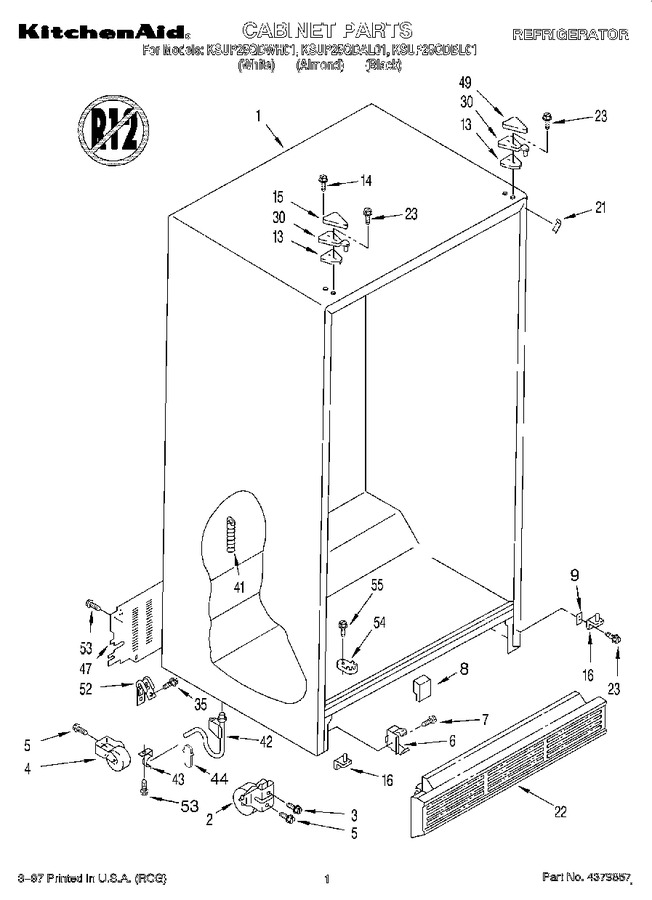

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 11.88
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489242)				$ 7.75
8	2176796		Insert, Air Baffle		Appelez-nous	-
9	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
13	2171868		Shim, Hinge Top		Appelez-nous	-
14	489284		Screw		Appelez-nous	-
15	2151694		Hinge Cover (black)		Appelez-nous	-
15	1129262		Hinge Cover (white)				$ 15.75
15	2150343		Hinge Cover (almond)		Appelez-nous	-
16	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 88.90
21	1127272		Filler, Wrapper (black)		Appelez-nous	-
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
22	2155485		Grille (black)				$ 55.93
22	2155486		Grille (white)		Appelez-nous	-
22	2155487		Grille (almond)		Appelez-nous	-
23	WP999367		Screw   (Replaces: 489367)				$ 7.86
30	2171865		Hinge Top (2)		Appelez-nous	-
35	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
42	W11512417		Tube, Extension   (Replaces: 2172932)				$ 34.79
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
44	2172957		Flappper, Drain Extension		Appelez-nous	-
47	WP2188755		Cover, Unit   (Replaces: 2176140)				$ 135.91
49	1119789		Hinge Cover (almond)		Appelez-nous	-
49	2155938		Hinge Cover (black)				$ 15.55
49	1119787		Hinge Cover (white)				$ 22.50
52	549193		Clamp-service Cord				$ 13.39
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
55	WP489483		Screw   (Replaces: 489420)				$ 10.87
