01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Lit/optional

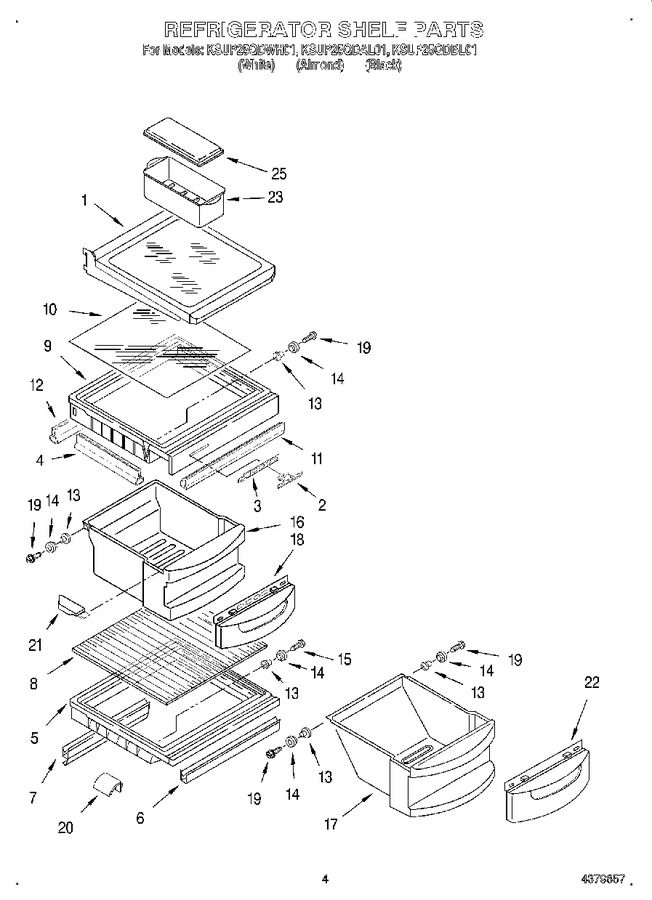

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174033		Shelf Assembly, Cantilever (3)		Appelez-nous	-
2	2174253		Button, Humidity		Appelez-nous	-
3	2174252		Slide, Humidity				$ 15.17
4	2174273		Gasket, Side (2)				$ 41.53
5	WP2161491		Cover, Meat Pan (includes 6, 7, 13, 14, 15 & 20)   (Replaces: 2161491)				$ 226.12
6	WP1125528		Gasket, Cover (front)   (Replaces: 1125705)				$ 153.99
7	2172956		Gasket, Cover (rear)		Appelez-nous	-
8	2174148		Glass, Cover		Appelez-nous	-
9	2174250		Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14, & 19)				$ 101.40
10	2179523		Glass, Cover		Appelez-nous	-
11	WP1125528		Gasket, (front)   (Replaces: 2174272)				$ 153.99
12	2174274		Gasket, (rear)				$ 41.02
13	2174478		Eyelet, Roller				$ 5.70
14	2174388		Roller		Appelez-nous	-
15	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
16	WP2179227		Crisper Pan (includes 13, 14, 18, 19 & 21)   (Replaces: 2179227)				$ 214.07
17	2179231		Meat Pan (includes 13, 14, 19, & 22)		Appelez-nous	-
18	2174076		Window, Crisper				$ 80.62
19	WP489261		Screw   (Replaces: 489261)				$ 7.61
20	2176095		Deflector				$ 87.30
21	2174259		Cap, Crisper Pan (right Side)		Appelez-nous	-
21	2174258		Cap, Crisper Pan (left Side)		Appelez-nous	-
22	WP2174362		Window, Meat Pan   (Replaces: 2174362)				$ 171.20
23	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 18.61
25	2169935		Cover		Appelez-nous	-
