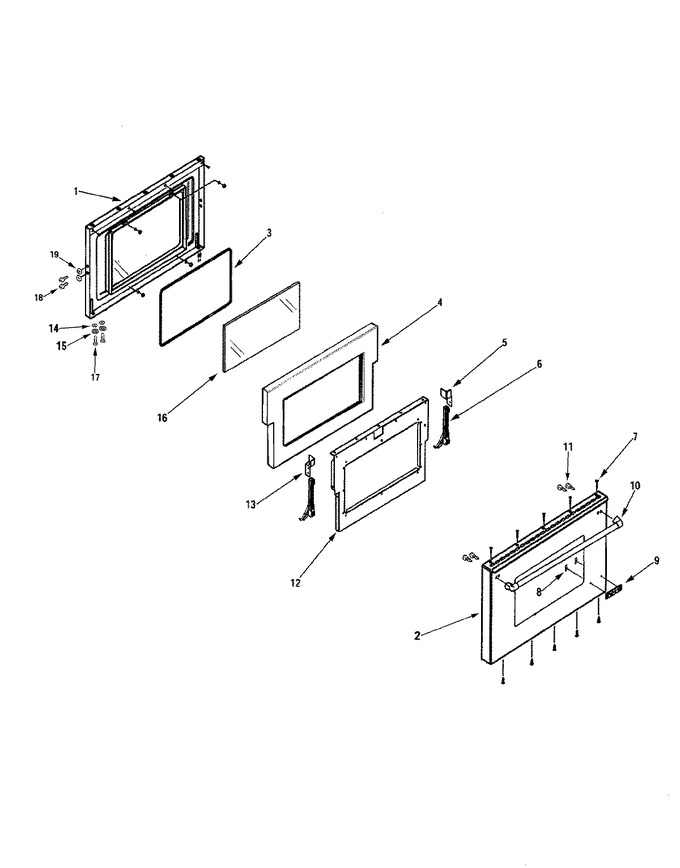

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322394 | Liner, Door Serial No 10002668lp And After |
|
- | |||||
| 1 | 73001547 | Bracket, Retainer(inner Glass) | 10 |
|
- | ||||
| 1 | 73001548 | Liner, Door | 10 |
|
- | ||||
| 2 | 73001618 | Door Panel/glass Asy (prg3010) | 10 |
|
- | ||||
| 3 | 73001256 | Gasket, Window | 10 |
|
- | ||||
| 4 | 73001545 | Insulation, Door | 10 |
|
- | ||||
| 5 | 73001543 | Bracket, Hinge (rt) | 10 |
|
- | ||||
| 6 | 73001109 | Hinge, Door (27``) | 10 |
|
$ 137.81 | ||||
| 6 | W10298135 | Hinge, Door (27`) Serial No.10002668lp And After |
|
- | |||||
| 7 | 73001258 | Screw (8-32 X 1``)-10 Pack | 10 |
|
- | ||||
| 8 | 73001259 | Clip, Nameplate | 10 |
|
- | ||||
| 9 | 73001260 | Nameplate | 10 |
|
- | ||||
| 10 | 73001261 | Handle, Door | 10 |
|
- | ||||
| 11 | WPW10031790 | Screw (no.10 X 1/2) (Replaces: 73001557) | 10 |
|
Immediately | $ 7.87 | |||
| 12 | 73001546 | Retainer, Door Insulation | 10 |
|
- | ||||
| 13 | 73001544 | Bracket, Hinge (lt) | 10 |
|
- | ||||
| 14 | 73001595 | Washer (tooth No.10) | 10 |
|
- | ||||
| 15 | 73001542 | Washer (no.10 7/16``) | 10 |
|
- | ||||
| 16 | W10324641 | Window Pack Serial No. 10002668lp And After |
|
- | |||||
| 16 | 73001540 | Glass, Door (inner) | 10 |
|
- | ||||
| 17 | WPW10001180 | Screw (no.10-24 X 1/2) (Replaces: 73001558) | 10 |
|
$ 8.05 | ||||
| 18 | 73001131 | Screw (no.10 X 3/4) | 10 |
|
- | ||||
| 19 | 73001596 | Washer (flat 3/4``) | 10 |
|
- |
