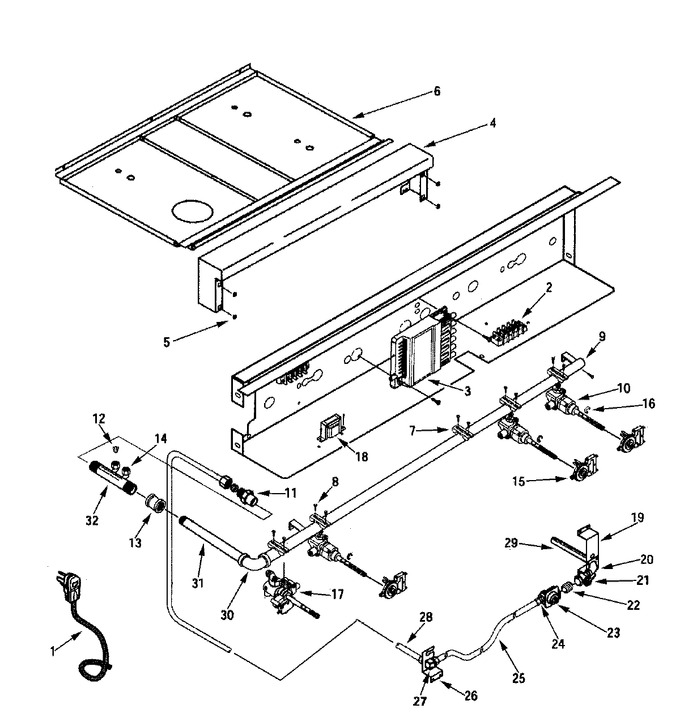

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001073		Cord, Power	1	Appelez-nous	-
2	73001066		Block, Terminal	1	Appelez-nous	-
3	WP73001323		Module, Reignition   (Replaces: 73001323)	1			$ 357.35
4	73001310		Ledge, Landing	1	Appelez-nous	-
5	73001470		Nut (8-32)	1			$ 12.74
6	73001309		Top Assembly (stl)	1	Appelez-nous	-
7	73001358		Clamp, Valve	1	Appelez-nous	-
8	73001361		Bolt (10-32x1)	1	Appelez-nous	-
9	73001520		Pipe, Manifold	1	Appelez-nous	-
10	73001450		Valve, Burner (lp)	1	Appelez-nous	-
11	73001461		Fitting (1/2 F-5/8 Tube)	1	Appelez-nous	-
12	73001444		Plug, Pipe (1/8)	1	Appelez-nous	-
13	73001082		Coupler, Pipe (1/2`` Npt)	1	Appelez-nous	-
14	73001081		Elbow, 3/8 Tod By 1/8 Npt	1	Appelez-nous	-
15	WP73001321		Switch, Igniter   (Replaces: 73001321)	1			$ 136.80
16	73001314		C-clip, Valve Stem	1			$ 26.16
17	73001451		Valve, Burner (dual Flow-lp)	1	Appelez-nous	-
18	73001322		Transformer	1	Appelez-nous	-
19	73001471		Bracket, Elbow Plate	1	Appelez-nous	-
20	73001381		Elbow/plate Assembly	1	Appelez-nous	-
21	73001478		Valve, Shut-off	1	Appelez-nous	-
22	73001379		Pipe Nipple (1/2 Npt)	1	Appelez-nous	-
23	73001126		Regulator, Pressure	1			$ 129.64
24	73001472		Fitting	1	Appelez-nous	-
25	73001527		Tubing, Bottom	1	Appelez-nous	-
26	73001474		Bracket, Elbow Support	1	Appelez-nous	-
27	73001475		Elbow, Compression	1	Appelez-nous	-
28	73001538		Tubing, Manifild Feed	1	Appelez-nous	-
29	73001528		Pipe, Intake (1/2``)	1	Appelez-nous	-
30	73001447		Elbow (1/2-1/2 F)	1	Appelez-nous	-
31	73001446		Pipe (1/2)	1	Appelez-nous	-
32	73001087		Oven Feed Adapter	1	Appelez-nous	-
