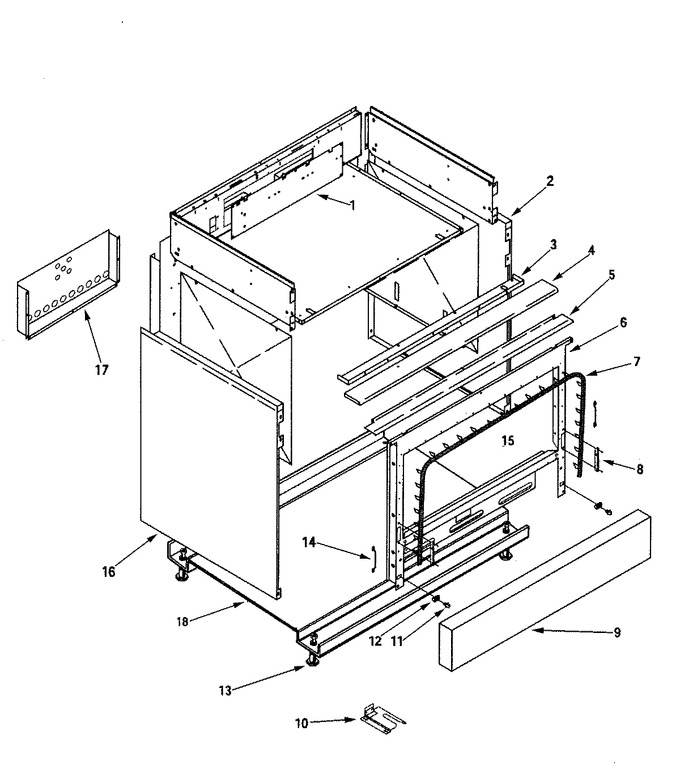

01 - Body
02 - Control Panel
03 - Door Assembly
04 - Oven Assembly
05 - Supplemental Information
06 - Surface Burner Assembly
07 - Top/burner Valves
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001406 | Panel, Service | 10 |
|
- | ||||
| 2 | 73001600 | Panel, Side (rt) | 10 |
|
- | ||||
| 4 | 73001588 | Handle, Drip Pan | 10 |
|
- | ||||
| 5 | 73001602 | Sheild, Heat (lwr) | 10 |
|
- | ||||
| 6 | 73001597 | Frame, Front | 10 |
|
- | ||||
| 7 | 73001056 | Gasket, Door (27``) | 10 |
|
- | ||||
| 8 | WP8181660 | Screw, Hinge/receptacle (Replaces: 73001229) | 10 |
|
$ 6.57 | ||||
| 8 | 73001063 | Receptacle, Hinge | 10 |
|
- | ||||
| 9 | 73001609 | Kickplate | 10 |
|
- | ||||
| 10 | WP73001214 | Bracket, Anti-tip (Replaces: 73001214) | 10 |
|
$ 146.84 | ||||
| 10 | 73001277 | Screw, Wood (10x2``flt Hd) | 10 |
|
- | ||||
| 11 | 73001064 | Catch (female) | 10 |
|
- | ||||
| 12 | 73001061 | Strike (male) | 10 |
|
- | ||||
| 13 | 73001083 | Leg, Leveling | 10 |
|
- | ||||
| 14 | 73001513 | Retainer, Gasket | 10 |
|
- | ||||
| 16 | 73001601 | Panel, Side (lt) | 10 |
|
- | ||||
| 17 | 73001408 | Housing, Motor | 10 |
|
- | ||||
| 18 | 73001598 | Base | 10 |
|
- |
