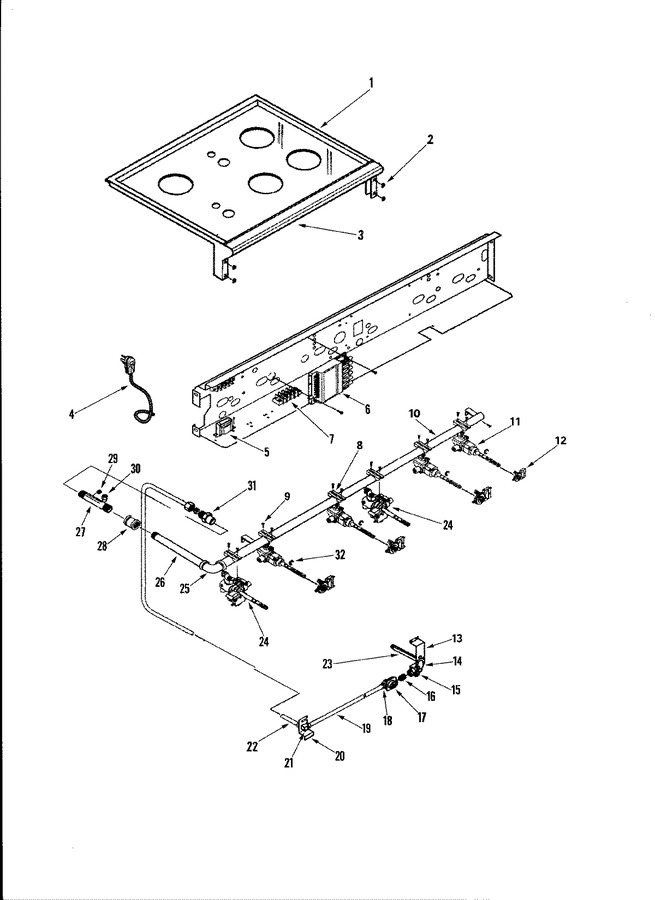

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001579		Top, Main	10	Appelez-nous	-
2	73001470		Nut (8-32)	10			$ 12.74
3	73001580		Ledge, Landing	10	Appelez-nous	-
4	73001427		Cord, Power	10	Appelez-nous	-
5	73001322		Transformer	10	Appelez-nous	-
6	WP73001323		Module, Reignition   (Replaces: 73001323)	10			$ 357.35
7	73001066		Block, Terminal	10	Appelez-nous	-
8	73001358		Clamp, Valve	10	Appelez-nous	-
9	73001361		Bolt (10-32x1)	10	Appelez-nous	-
10	73001581		Pipe, Manifold	10	Appelez-nous	-
11	73001450		Valve, Burner (lp)	10	Appelez-nous	-
12	WP73001321		Switch, Igniter   (Replaces: 73001321)	10			$ 136.80
13	73001471		Bracket, Elbow Plate	10	Appelez-nous	-
14	73001381		Elbow/plate Assembly	10	Appelez-nous	-
15	73001478		Valve, Shut-off	10	Appelez-nous	-
16	73001379		Pipe Nipple (1/2 Npt)	10	Appelez-nous	-
17	73001126		Regulator, Pressure	10			$ 129.64
18	73001472		Fitting	10	Appelez-nous	-
19	73001608		Tubing, Bottom	10	Appelez-nous	-
20	73001474		Bracket, Elbow Support	10	Appelez-nous	-
21	73001475		Elbow, Compression	10	Appelez-nous	-
22	73001476		Tubing, Manifold Feed	10	Appelez-nous	-
23	73001477		Pipe, Intake	10	Appelez-nous	-
24	73001451		Valve, Burner (dual Flow-lp)	10	Appelez-nous	-
25	73001447		Elbow (1/2-1/2 F)	10	Appelez-nous	-
26	73001446		Pipe (1/2)	10	Appelez-nous	-
27	73001087		Oven Feed Adapter	10	Appelez-nous	-
28	73001082		Coupler, Pipe (1/2`` Npt)	10	Appelez-nous	-
29	73001444		Plug, Pipe (1/8)	10	Appelez-nous	-
30	73001081		Elbow, 3/8 Tod By 1/8 Npt	10	Appelez-nous	-
31	73001461		Fitting (1/2 F-5/8 Tube)	10	Appelez-nous	-
32	73001314		C-clip, Valve Stem	10			$ 26.16

    View Diagram in Separate Window       Print Part List
