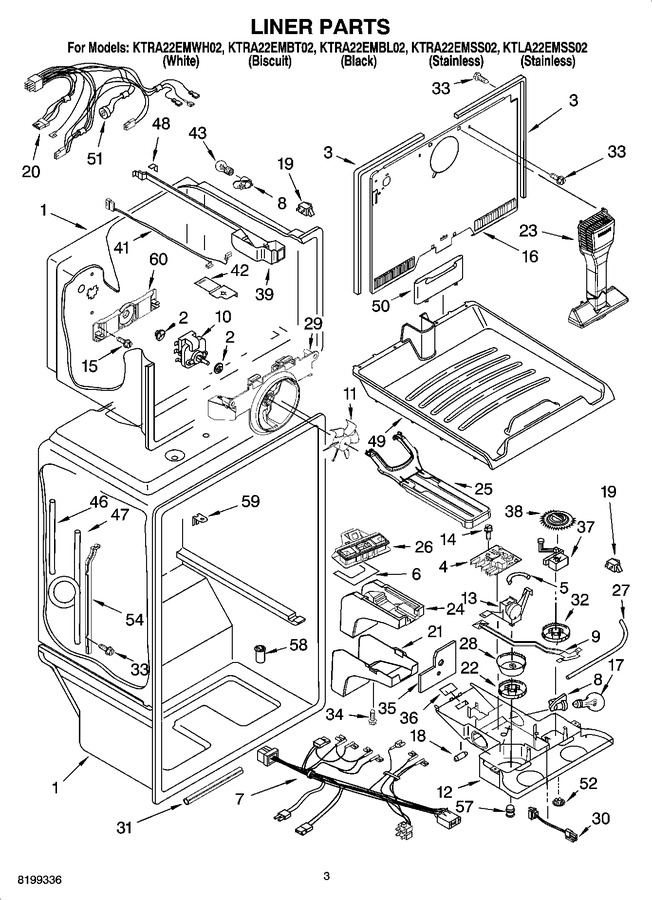

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 26.78 | |||||
| 4 | 2303823 | Adaptive Defrost Control/wfi Board Assembly |
|
- | |||||
| 5 | WP2196003 | Thermostat Tube Barrier (Replaces: 549512) |
|
$ 7.95 | |||||
| 6 | 2179834 | Seal, Air Diffuser |
|
- | |||||
| 7 | 2187883 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | 2212413 | Damper, Air (slide) |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 70.17 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2218670 | Control Box |
|
- | |||||
| 13 | 2302286 | Thermostat |
|
$ 112.82 | |||||
| 14 | 8534009 | Screw |
|
- | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 16 | 2302561 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (2) (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (2) (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | 2187992 | Wire Assembly, Freezer Compartment (includes Illus. 51) |
|
$ 15.25 | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2205094 | Knob, Thermostat |
|
- | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 103.09 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 124.79 | ||||
| 25 | 2225473 | Retainer, Freezer Floor |
|
- | |||||
| 26 | 2212439 | Air Separator Assembly |
|
- | |||||
| 27 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 28 | WP2184574 | Gear Wheel, Thermostat (Replaces: 2184574) |
|
$ 68.60 | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | W10853646 | Harness, Indicator Light (Replaces: 2213462) |
|
$ 124.57 | |||||
| 31 | 2301622 | Insulation, Water Tube |
|
- | |||||
| 32 | 2204951 | Knob, Damper |
|
- | |||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 34 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 35 | 2204639 | Shield, Heat |
|
- | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 9.53 | |||||
| 37 | 2204991 | Control, Freezer |
|
- | |||||
| 38 | 2204992 | Gear Wheel, Freezer Control |
|
- | |||||
| 39 | 2300418 | Housing Base |
|
$ 44.10 | |||||
| 41 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | 4396822 | Light Bulb (Replaces: 2260802) |
|
Immediately | $ 12.93 | ||||
| 46 | 2301621 | Tube, Water |
|
$ 85.03 | |||||
| 47 | 8201597 | Tube, Filter Inlet (Replaces: 2305536) |
|
Immediately | $ 77.02 | ||||
| 48 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 49 | 2225476 | Pullout, Freezer Floor |
|
$ 26.15 | |||||
| 50 | 2198768 | Rear Fence Pull-out Freezer Floor |
|
$ 35.55 | |||||
| 51 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 52 | 940014 | Hole Plug, Control Box |
|
$ 18.33 | |||||
| 54 | 2225531 | Cover, Tubing |
|
- | |||||
| 57 | 2213495 | Cover, Light Lens |
|
- | |||||
| 58 | WP2210509 | Valve (Replaces: 2210509) |
|
$ 94.43 | |||||
| 59 | 2210563 | Clip, Retainer |
|
- | |||||
| 60 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 71.85 |
