01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Icemaker Parts


07 - Freezer Door Parts


08 - Water Dispenser Parts, Optional Parts

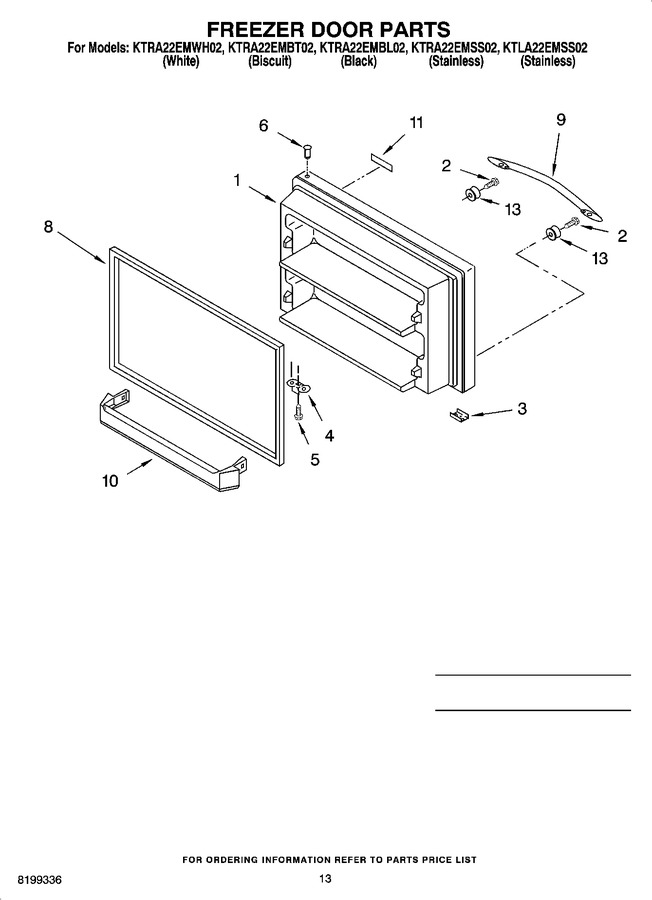

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221726		Freezer Door (includes Illus. 3,6 & 8) (white)		Appelez-nous	-
1	2221728		Freezer Door (includes Illus. 3,6 & 8) (biscuit)		Appelez-nous	-
1	2221727		Freezer Door (includes Illus. 3,6 & 8) (black)		Appelez-nous	-
1	2221746		Freezer Door (includes Illus. 3,6 & 8) (stainless (for Model Ktra22emss02))		Appelez-nous	-
1	2221747		Freezer Door (includes Illus. 3,6 & 8) (stainless (for Model Ktla22emss02))		Appelez-nous	-
2	WP488163		Screw   (Replaces: 488208)				$ 7.54
3	2183000		Tap Plate				$ 36.19
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
8	2177310		Door Gasket,magnetic (black)   (Replaces: 2214969)				$ 319.34
8	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 320.01
9	2221770		Handle, Door (stainless)		Appelez-nous	-
9	2221771		Handle, Door (white)		Appelez-nous	-
9	2221772		Handle, Door (black)		Appelez-nous	-
9	2221773		Handle, Door (biscuit)		Appelez-nous	-
10	2159292		Trim, Door				$ 38.17
11	2212760		Nameplate (white)		Appelez-nous	-
11	2212762		Nameplate (black)		Appelez-nous	-
11	2212761		Nameplate (biscuit)		Appelez-nous	-
13	2221730		Left Hand Door Swing (biscuit)		Appelez-nous	-
13	2221731		Left Hand Door Swing (black)		Appelez-nous	-
13	2221729		Left Hand Door Swing (white)		Appelez-nous	-
13	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51

    View Diagram in Separate Window       Print Part List
