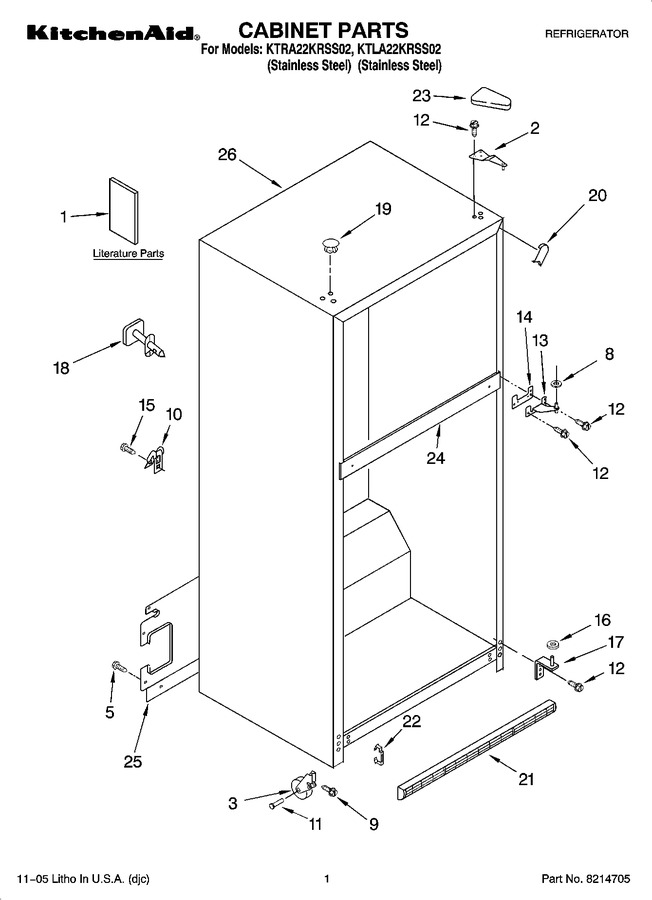

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225415 | Customer Instructions |
|
- | |||||
| 1 | 2314274 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2314167 | Energy Label |
|
- | |||||
| 1 | 2314464 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 8 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 9 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.55 | |||||
| 10 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 11 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 12 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 13 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 92.02 | ||||
| 14 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 11.43 | |||||
| 15 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 16 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 17 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 9.28 | |||||
| 18 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | WP2183998 | Hole Plug (6) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 20 | W11252732 | Corner Filler (2) (Replaces: 2201017) |
|
$ 13.07 | |||||
| 21 | 2254315 | Grille (includes Illus. 22) |
|
$ 41.54 | |||||
| 22 | 2189356 | Clip-grille (2) |
|
$ 5.70 | |||||
| 23 | WP2213363 | Cover, Hinge (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 24 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 25 | 2202884 | Cover, Unit |
|
- | |||||
| 26 | N/A | Cabinet (not A Serviceable Part) |
|
- |
