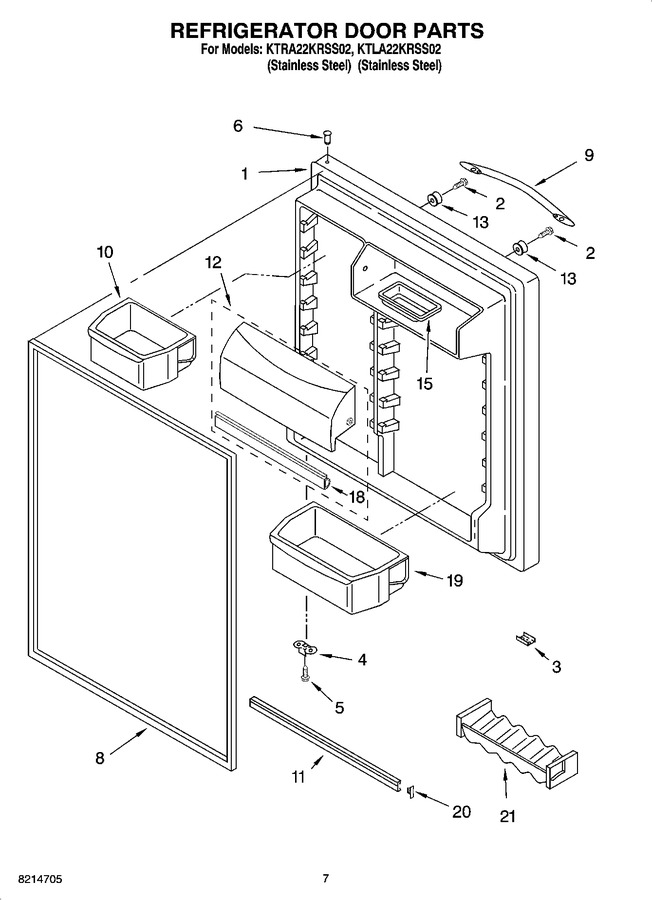

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2221742 | Refrigerator Door (includes Illus. 3,6 & 8) (for Model Ktra22krss02) |
|
- | |||||
| 1 | 2221743 | Refrigerator Door (includes Illus. 3,6 & 8) (for Model Ktla22krss02) |
|
- | |||||
| 2 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 3 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 8 | 2177311 | Door Gasket, Magnetic (Replaces: 2202882) |
|
$ 315.19 | |||||
| 9 | 2221770 | Handle, Door |
|
- | |||||
| 10 | 2171064 | Bin, Door Shelf |
|
- | |||||
| 11 | WPW10421486 | Shelf, Trim (Replaces: 2195948) |
|
$ 109.28 | |||||
| 12 | 2218119 | Door Compartment |
|
- | |||||
| 13 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 15 | 2165792 | Butter, Dish |
|
- | |||||
| 18 | 2159124 | Gasket, Door Compartment |
|
- | |||||
| 19 | 2171062 | Bin, Door Shelf (1) |
|
$ 40.08 | |||||
| 20 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 21 | 2193409 | Beverage Holder |
|
$ 48.13 |
