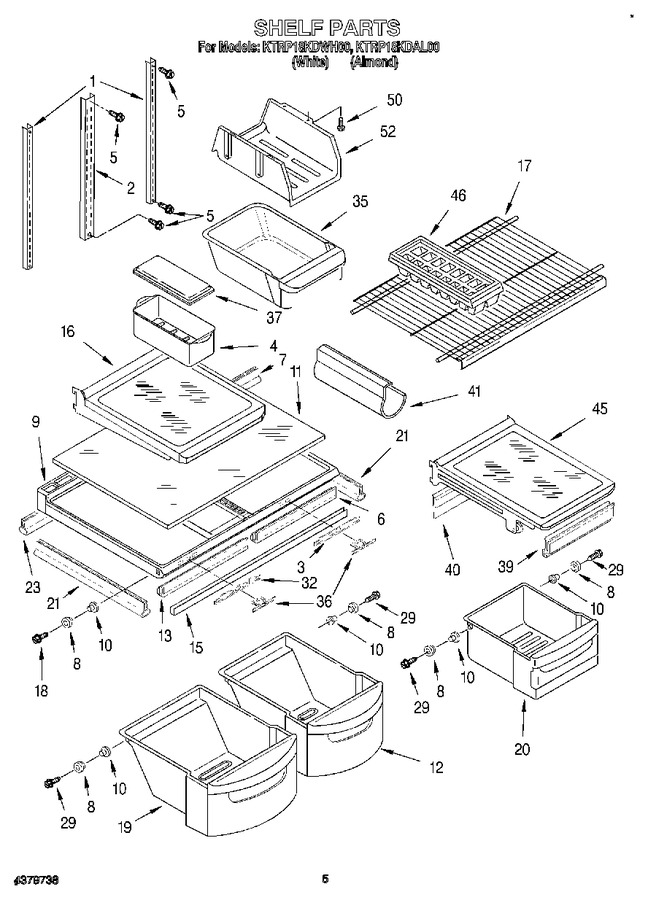

03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172637		Shelf, Ladder (2)		Appelez-nous	-
2	2172638		Shelf, Ladder Center		Appelez-nous	-
3	2174256		Slide, Humidity		Appelez-nous	-
4	W10136387A		Egg Bin   (Replaces: 2164372)				$ 18.61
5	W11544659		Screw   (Replaces: 489415)				$ 13.67
6	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179212)				$ 153.99
7	2179215		Gasket, Crisper Cover (rear)		Appelez-nous	-
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2174126		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174140		Glass, Crisper Cover		Appelez-nous	-
12	2174059		Pan, Crisper (includes Rollers)		Appelez-nous	-
13	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179213)				$ 153.99
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 97.22
16	2174029		Shelf Assembly, Spillguard (3)		Appelez-nous	-
17	2172536		Shelf, Freezer		Appelez-nous	-
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
19	2174062		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174077		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear)		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 7.61
32	2174257		Slide, Humidity		Appelez-nous	-
35	2174124		Pan, Ice Cube		Appelez-nous	-
36	2174253		Button, Humidity Control		Appelez-nous	-
37	2164374		Cover		Appelez-nous	-
39	2174394		Gasket, Front		Appelez-nous	-
40	2174395		Gasket, Rear		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179375)				$ 23.60
45	2174383		Shelf Assembly, Spillguard		Appelez-nous	-
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 45.56
50	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.94
52	2172569		Shelf, Ice Tray		Appelez-nous	-
