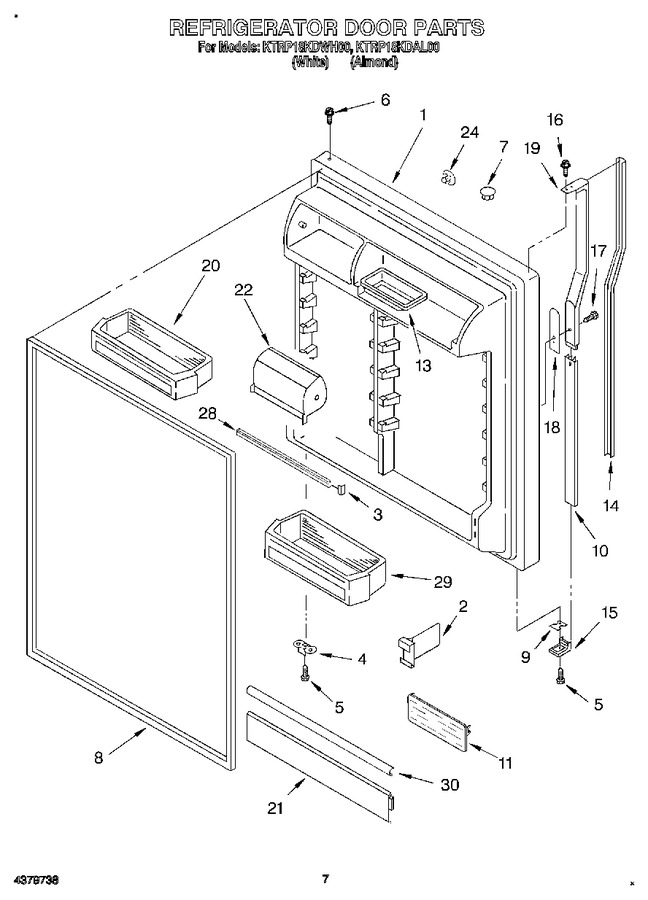

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2180025		Panel, Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2180026		Panel, Refrigerator Door (includes Item 8) (almond)		Appelez-nous	-
2	2152335		Divider-door Bin		Appelez-nous	-
3	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
4	2159368		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159057		Door Gasket, Magnetic (phantom Gray)   (Replaces: 2177307)			Immediately	$ 164.66
9	2151813		Shim, Handle		Appelez-nous	-
10	2168900		Retainer, Insert		Appelez-nous	-
11	2159303		Shelf, Flip-up		Appelez-nous	-
13	1125936		Butter, Tray		Appelez-nous	-
14	2168896		Insert, Handle (white)		Appelez-nous	-
14	2168897		Insert, Handle (almond)		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	2161508		Handle				$ 111.30
20	2180029		Bin, Door Shelf (narrow) (2)		Appelez-nous	-
21	WPW10421484		Trivet   (Replaces: 2171249)				$ 136.25
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
28	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
29	2180030		Bin, Door Shelf (wide) (2)		Appelez-nous	-
30	WPW10421484		Trim, Trivet   (Replaces: 2177250)				$ 136.25
