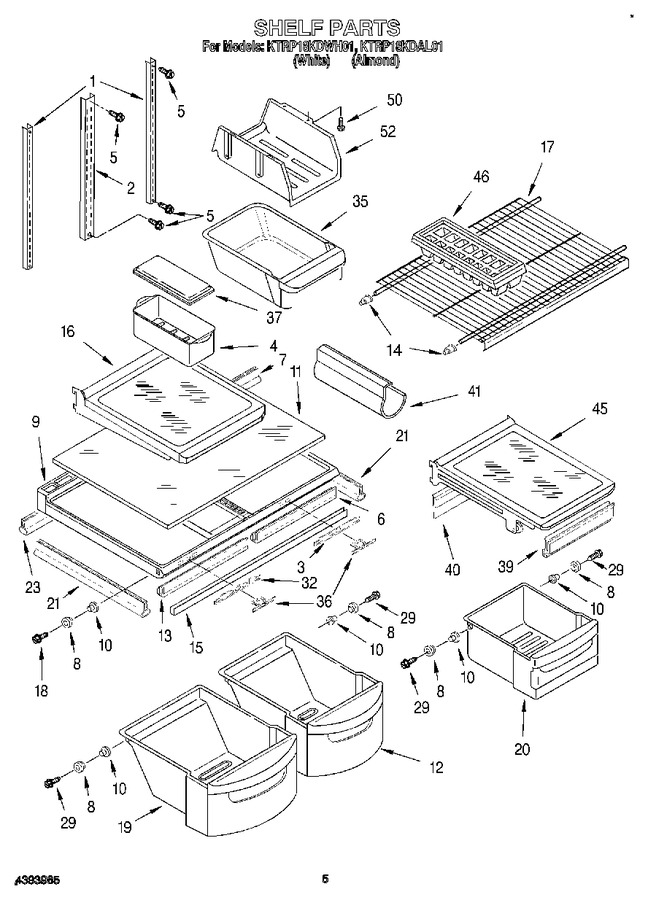

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2172637 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2172638 | Shelf, Ladder Center |
|
- | |||||
| 3 | 2174256 | Slide, Humidity |
|
- | |||||
| 4 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 19.54 | |||||
| 5 | W11544659 | Screw (Replaces: 489415) |
|
$ 14.35 | |||||
| 6 | WP1125528 | Gasket, Crisper Cover (front) (Replaces: 2179212) |
|
$ 161.69 | |||||
| 7 | 2179215 | Gasket, Crisper Cover (rear) |
|
- | |||||
| 8 | 2174388 | Roller & Tread Assembly |
|
- | |||||
| 9 | 2174126 | Crisper Cover (includes Rollers) |
|
- | |||||
| 10 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 11 | 2174140 | Glass, Crisper Cover |
|
- | |||||
| 12 | 2174059 | Pan, Crisper (includes Rollers) |
|
- | |||||
| 13 | WP1125528 | Gasket, Crisper Cover (front) (Replaces: 2179213) |
|
$ 161.69 | |||||
| 14 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 102.08 | |||||
| 16 | 2174029 | Shelf Assembly, Spillguard (3) |
|
- | |||||
| 17 | 2172536 | Shelf, Freezer |
|
- | |||||
| 18 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 19 | 2174062 | Pan, Crisper (includes Rollers) |
|
- | |||||
| 20 | 2174077 | Pan, Meat (includes Rollers) |
|
- | |||||
| 21 | 2179214 | Gasket, Crisper Cover (side) (4) |
|
- | |||||
| 23 | 2179216 | Gasket, Crisper Cover (rear) |
|
- | |||||
| 29 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 32 | 2174257 | Slide, Humidity |
|
- | |||||
| 35 | 2174124 | Pan, Ice Cube |
|
- | |||||
| 36 | 2174253 | Button, Humidity Control |
|
- | |||||
| 37 | 2169935 | Cover |
|
- | |||||
| 39 | 2174394 | Gasket, Front |
|
- | |||||
| 40 | 2174395 | Gasket, Rear |
|
- | |||||
| 41 | W10777924 | Wine Rack Assembly (Replaces: 2179375) |
|
$ 24.78 | |||||
| 45 | 2174383 | Shelf Assembly, Spillguard |
|
- | |||||
| 46 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 50 | WP489442 | Screw (Replaces: 489438) |
|
Immediately | $ 11.49 | ||||
| 52 | 2172569 | Shelf, Ice Tray |
|
- |
