01 - Cabinet
02 - Liner
03 - Shelf
04 - Refrigerator Door

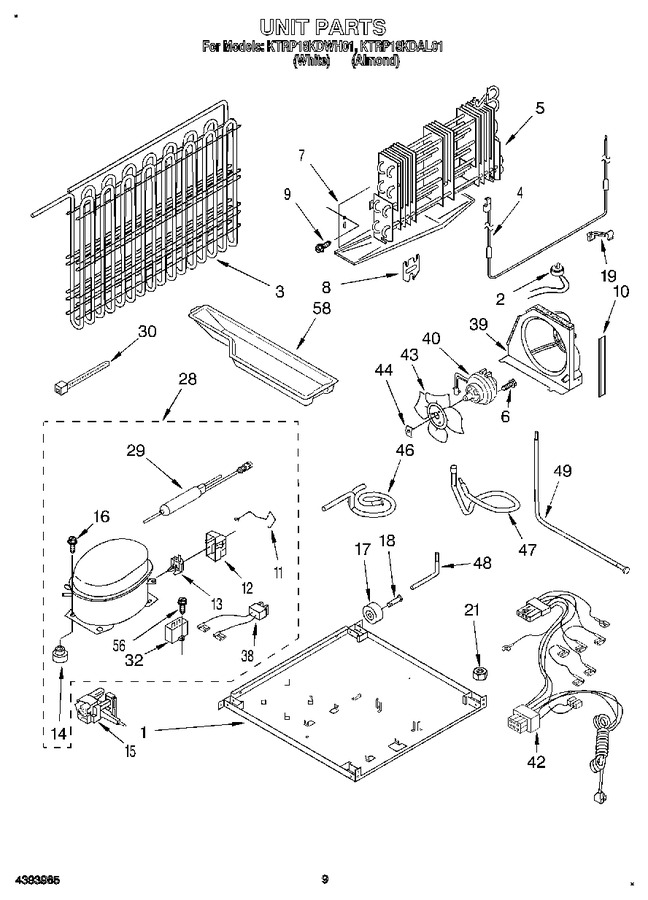

05 - Unit
06 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2174620 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP4387503 | Defrost Bimetal (Replaces: 2182380) |
|
Immediately | $ 47.89 | ||||
| 3 | 2179882 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 104.62 | |||||
| 5 | 2176337 | Evaporator Assy. |
|
- | |||||
| 6 | 489414 | Screw |
|
- | |||||
| 7 | 2172619 | Drain Pan |
|
- | |||||
| 8 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 9 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | 2162400 | Clamp (production Only) |
|
- | |||||
| 12 | WP2162358 | Cover (service Only) (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | 4387913 | Overload (Replaces: 2154759) |
|
Immediately | $ 84.39 | ||||
| 14 | 876811 | Grommet, (service Compressor) (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 14 | 2174621 | Grommet (4) (production) |
|
- | |||||
| 15 | 2169337 | Module |
|
- | |||||
| 16 | 489433 | Screw |
|
- | |||||
| 17 | 2163782 | Roller (2) |
|
- | |||||
| 18 | W11594405 | Rivet (Replaces: 981126) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 21 | N/A | Nut (not Serviced) |
|
- | |||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 28 | W10309988 | Compressor (includes Items 11, 12, 13, 14, 16, 29, 32, 38 & 56) (also Order) (Replaces: 2169402) |
|
Immediately | $ 587.29 | ||||
| 29 | W10843121 | Drier (Replaces: 2174865) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | 2169137 | Capacitor |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (Replaces: 2172890) |
|
$ 8.51 | |||||
| 39 | 2182395 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2176336) |
|
Immediately | $ 221.30 | ||||
| 42 | 2182379 | Wire Assy., Unit |
|
- | |||||
| 43 | 851732 | Fan, Blade |
|
- | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 46 | 2184451 | Tube, Discharge |
|
- | |||||
| 47 | 2182475 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 76.26 | |||||
| 49 | 2174670 | Tube, Condenser To Heat Loop |
|
- | |||||
| 56 | W11693756 | Screw (Replaces: 487240) |
|
Immediately | $ 14.76 | ||||
| 58 | 482278 | Start Kit |
|
- | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | 2163795 | Evap. Tray |
|
- | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
