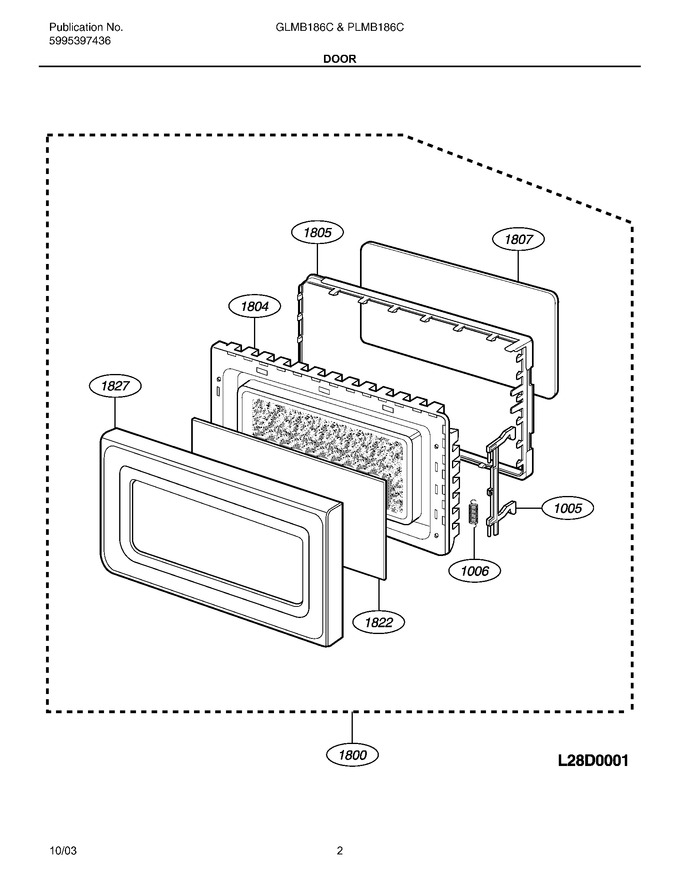

03 - Door


05 - Control Panel


07 - Oven Cavity


09 - Latch Board


11 - Interior


13 - Base Plate


15 - Sensor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
F1005	5304423406		Latch, Door		Appelez-nous	-
F1006	5304423407		Spring,door Latch		Appelez-nous	-
F1800	5304435977		Door,stainless Steel ,complete Assy		Appelez-nous	-
F1804	5304423411		Panel, Door, Black, Inner		Appelez-nous	-
F1805	5304423413		Frame,choke Cover ,inner Door		Appelez-nous	-
F1807	5304423415		Seal, Door, Film		Appelez-nous	-
F1822	5304423418		Screen,door ,glass ,front		Appelez-nous	-
F1827	5304435981		Frame,outer Door ,stainless Steel		Appelez-nous	-
