New Model Search:

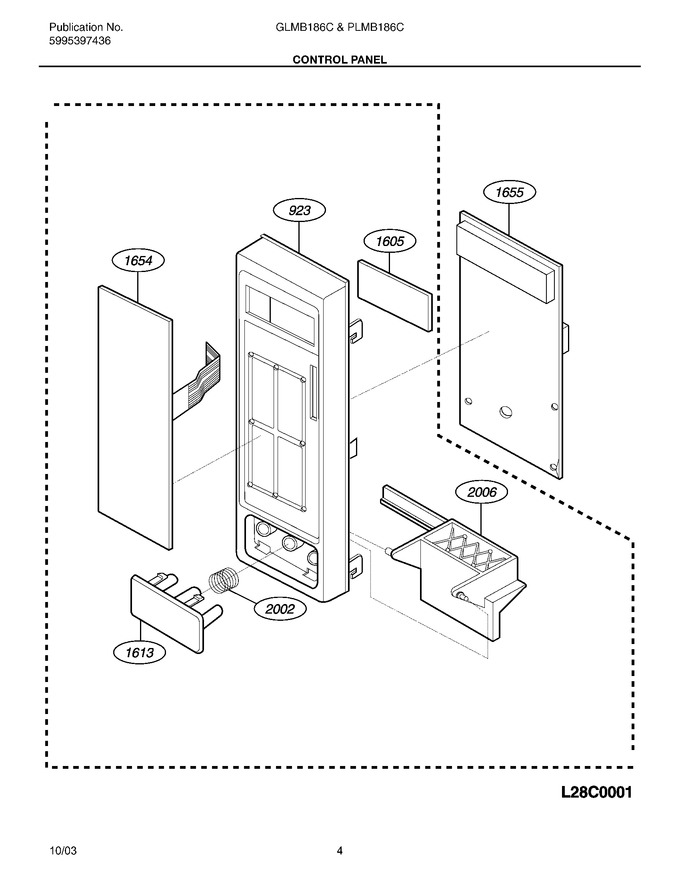

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 923 | 5304423424 | Housing,control Panel ,stainless Steel |
|
- | |||||
| F1605 | 5304423425 | Window, Control Display |
|
- | |||||
| F1613 | 5304423428 | Button, Door Release, Stainless Steel |
|
- | |||||
| F1654 | 5304423429 | Switch,touch Control ,membrane ,black |
|
$ 198.61 | |||||
| F1655 | 5304423361 | Control Board, Printed Circuit |
|
- | |||||
| F2002 | 5304423431 | Spring,door Button |
|
- | |||||
| F2006 | 5304423432 | Lever, Door Release |
|
- |
