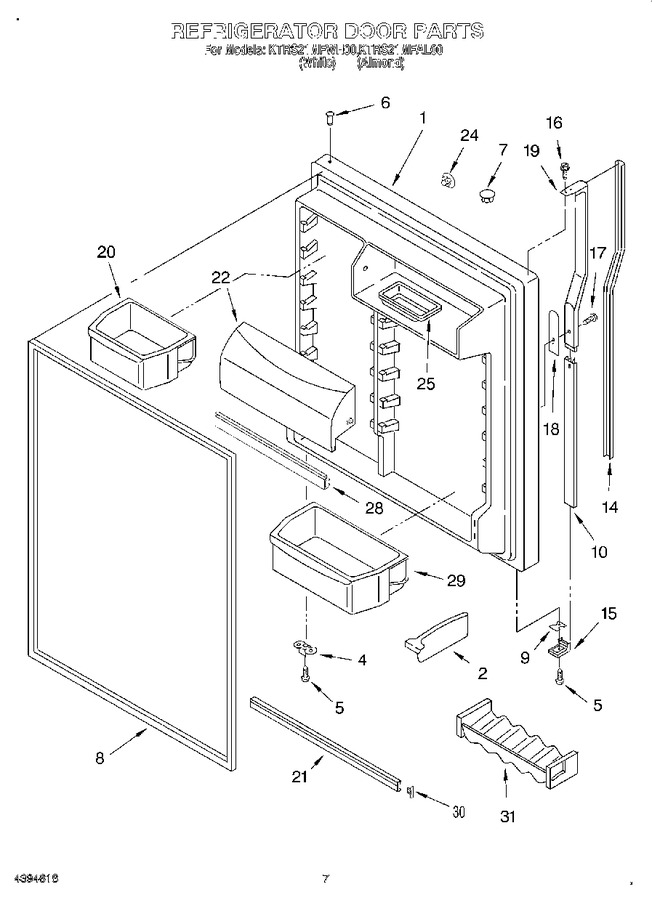

04 - Refrigerator Door


05 - Unit


06 - Ice Maker


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183935		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2183936		Refrigerator Door (includes No.6 & No.8) (almond)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159061		Door Gasket, Magnetic			Immediately	$ 183.67
9	2151813		Shim, Handle		Appelez-nous	-
10	2168900		Retainer, Insert		Appelez-nous	-
14	2168897		Insert, Handle (almond)		Appelez-nous	-
14	2168896		Insert, Handle (white)		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	1107650		Spacer, Handle		Appelez-nous	-
19	2161508		Handle				$ 111.30
20	2171066		Bin, Door Shelf (2)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2177261)				$ 114.74
22	2182399		Door, Compartment		Appelez-nous	-
24	2189008		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
25	2165792		Tray, Butter		Appelez-nous	-
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171063		Bin, Door Shelf (1)		Appelez-nous	-
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2193409		Beverage Holder				$ 48.13
100	2182582		Featurepak (includes 2,20,21, 22,25,28,29,30) Also See Frz.dr. & Shelf Pgs.		Appelez-nous	-
