| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

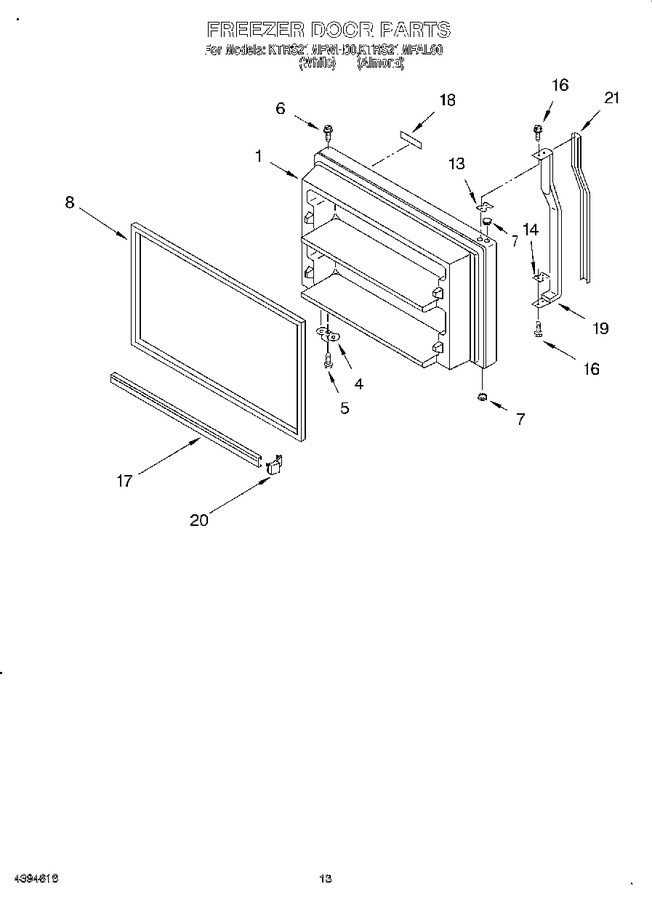

| 1 | W11023679 | Freezer Door (includes No. 6 & No. 8) (white) (Replaces: 2182489) |
|
$ 758.35 | |||||
| 1 | 2184400 | Freezer Door (includes No.6 & No.8) (almond) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2159060 | Door Gasket, Magnetic |
|
$ 336.01 | |||||
| 13 | 1107628 | Spacer, Handle |
|
- | |||||
| 14 | 2151813 | Shim, Handle |
|
- | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | 2171265 | Trim, Door |
|
- | |||||
| 18 | 2168991 | Nameplate (almond Model) |
|
- | |||||
| 18 | 2168800 | Nameplate (white Model) |
|
- | |||||
| 19 | 2168901 | Handle |
|
- | |||||
| 20 | WP2195916K | Trim, End Cap (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 21 | 2168898 | Insert, Handle (white) |
|
- | |||||
| 21 | 2168899 | Insert, Handle (almond) |
|
- | |||||
| 100 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 100 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 100 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 100 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 100 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 100 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 100 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 100 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 100 | 2182582 | Featurepak (includes 17, 20) Also See Ref.dr. & Shelf Pgs. |
|
- | |||||
| 100 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 100 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 100 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 100 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 100 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 100 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 100 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 100 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 100 | 2179846 | Door Reversal Instructions |
|
- | |||||
| 100 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 100 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 100 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 100 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 100 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 100 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 100 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 100 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| LIT2195600 | Energy Label |
|
- | ||||||
| LIT2195481 | Service & Wiring Sheet |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| LIT2195462 | Use & Care Guide |
|
- | ||||||
| LIT628370 | Modular Icemaker Service Sheet |
|
- |
