SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Freezer Door


04 - Shelf


05 - Refrigerator Door


06 - Unit


07 - Compartment Separator, Optional

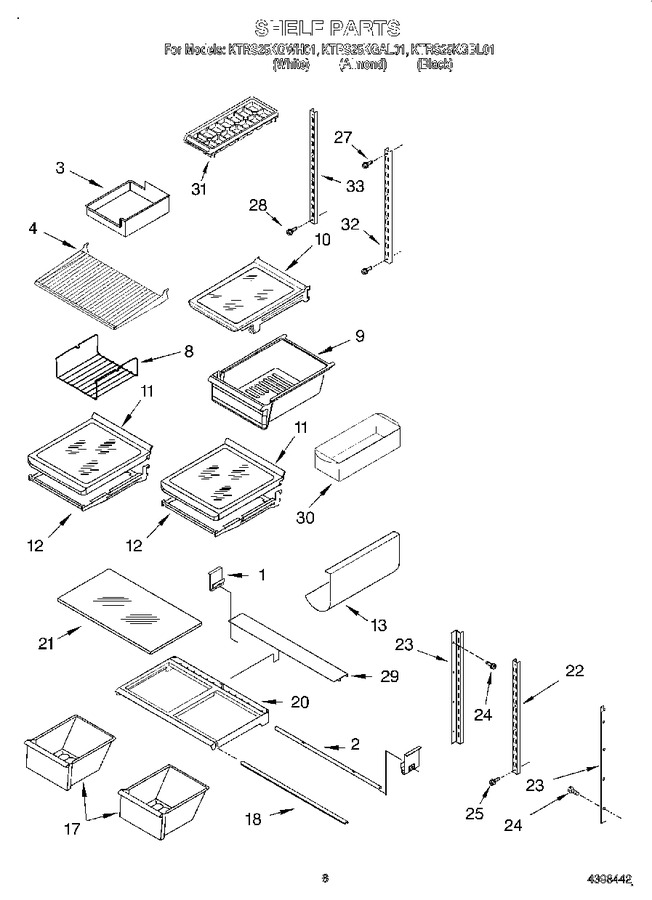

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344444		Support, Crisper		Appelez-nous	-
2	4344445		Crisper, Cross Member		Appelez-nous	-
3	WP67001255		Ice Bucket   (Replaces: 8170399)				$ 191.91
4	4344438		Shelf, Frz. Wire		Appelez-nous	-
8	4344513		Rack, Ice Tray		Appelez-nous	-
9	8170419		Meat Pan		Appelez-nous	-
10	4344496		Shelf, Meat Pan		Appelez-nous	-
11	8170421		Shelf, S/g (3)		Appelez-nous	-
12	8170420		Frame Assy (3)		Appelez-nous	-
13	4344294		Rack, Wine		Appelez-nous	-
17	8170425		Pan, Crisper		Appelez-nous	-
18	8170423		Support, Crisper Cvr		Appelez-nous	-
20	8170422		Cover, Pan		Appelez-nous	-
21	8170424		Glass, Crisper Cover		Appelez-nous	-
22	8170437		Ladder, Center		Appelez-nous	-
23	4344323		Ladder, Side		Appelez-nous	-
24	67006425		Screw   (Replaces: 4344396)			Immediately	$ 6.57
25	4344523		Screw		Appelez-nous	-
27	4344493		Screw		Appelez-nous	-
28	4344494		Screw		Appelez-nous	-
29	4344446		Spacer, Crisper		Appelez-nous	-
30	W10136387A		Bin, Egg   (Replaces: 4344169)				$ 17.59
31	WP841180A		Tray, Ice Cube   (Replaces: 4344171)			Immediately	$ 43.06
32	4344489		Ladder, Frz Rs		Appelez-nous	-
33	4344490		Ladder, Frz Ls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
