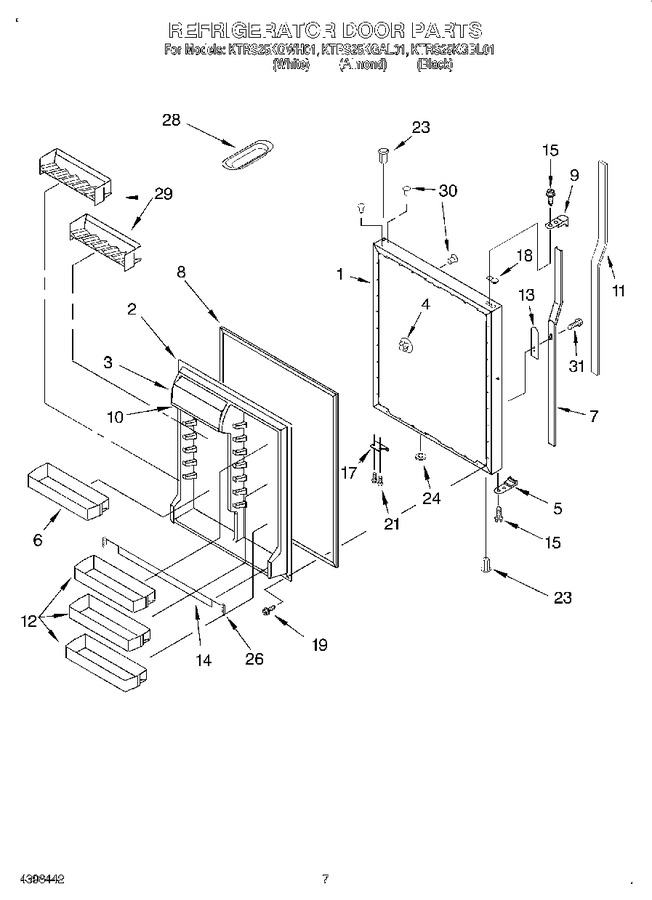

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344530 | Refrigerator Door Panel (includes Insulation) (white) |
|
- | |||||
| 1 | 4344529 | Refrigerator Door Panel (includes Insulation) (almond) |
|
- | |||||
| 1 | 4344528 | Refrigerator Door Panel (includes Insulation) (black) |
|
- | |||||
| 2 | 4344531 | Interior Panel |
|
- | |||||
| 3 | 4344369 | Door, Compartment |
|
- | |||||
| 4 | WP2189009 | Hole Plug (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 4 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 4 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 5 | 4344590 | End Cap (almond) |
|
- | |||||
| 5 | 4344591 | End Cap (black) |
|
- | |||||
| 5 | 4344589 | End Cap (white) |
|
- | |||||
| 6 | 4344532 | Shelf Bin (1) |
|
- | |||||
| 7 | 2188223W | Retainer, Insert (white) |
|
- | |||||
| 7 | 2188223N | Retainer, Insert (almond) |
|
- | |||||
| 7 | 2188223B | Retainer, Insert (black) |
|
- | |||||
| 8 | 8170438 | Door Gasket, Magnetic (black) |
|
- | |||||
| 8 | 8170439 | Door Gasket, Magnetic (white) |
|
- | |||||
| 9 | 2195995N | Endcap (almond) |
|
- | |||||
| 9 | 2195995W | Endcap (white) |
|
$ 10.04 | |||||
| 9 | 2195995B | End Cap (black) |
|
$ 24.15 | |||||
| 10 | 4344370 | Gasket |
|
- | |||||
| 11 | 2188138 | Insert, Handle (black) |
|
- | |||||
| 11 | 2188137 | Insert, Handle (almond) |
|
- | |||||
| 11 | 2188136 | Insert, Handle (white) |
|
- | |||||
| 12 | 8170300 | Shelf Bin (3) |
|
- | |||||
| 13 | 2188146 | Spacer, Handle |
|
- | |||||
| 14 | 4344536 | Trim, Door |
|
- | |||||
| 15 | 4344588 | Screw |
|
- | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 4344463) |
|
$ 62.36 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 4344563) |
|
Immediately | $ 13.28 | ||||
| 17 | 67003781 | Stop, Door (almond) (Replaces: 4344456) |
|
$ 74.81 | |||||
| 18 | 4344434 | Plug, Button (white) |
|
- | |||||
| 18 | 4344433 | Plug, Button (almond) |
|
- | |||||
| 19 | 4343811 | Screw |
|
- | |||||
| 21 | WPW10348409 | Screw (Replaces: 4344333) |
|
Immediately | $ 7.38 | ||||
| 23 | 4344362 | Bushing (white) |
|
- | |||||
| 23 | 4344361 | Bushing (black) |
|
- | |||||
| 24 | 4344363 | Plug, Button (almond) |
|
- | |||||
| 24 | 4344227 | Plug, Button (white) |
|
- | |||||
| 24 | 4344364 | Plug, Button (black) |
|
- | |||||
| 26 | 4344346 | Plug-trim |
|
- | |||||
| 28 | 4344296 | Butter Dish |
|
- | |||||
| 29 | 4344374 | Holder, Beverage |
|
- | |||||
| 30 | WP12246608 | Plug, Button (black) (Replaces: 4344533) |
|
Immediately | $ 7.34 | ||||
| 30 | 4344534 | Plug, Button (almond) |
|
- | |||||
| 30 | WP67001130 | Plug, Button (white) (Replaces: 4344535) |
|
Immediately | $ 7.39 | ||||
| 31 | 8170313 | Screw |
|
- |
